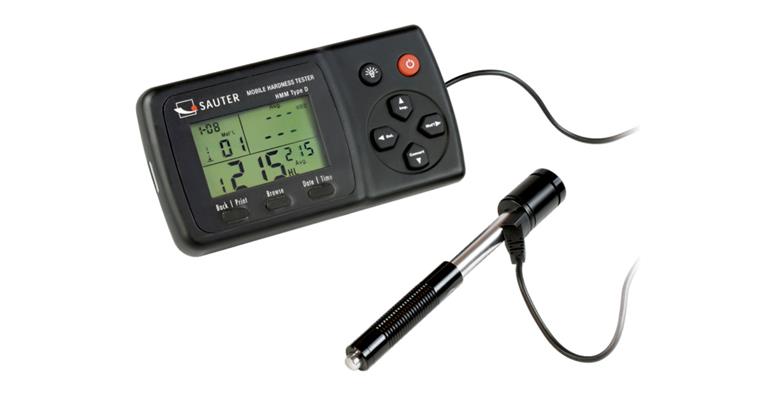

Hardness tester HLD MR 170-960 dimensions 150x80x30 mm

Hardness tester HLD MR 170-960 dimensions 150x80x30 mm

Hardness tester HLD MR 170-960 dimensions 150x80x30 mm
Item no: 1039184 101

Online price:

Still in stock: 3

Execution
  • Mobility: compared to stationary table-top devices and hardness testers, offers maximum mobility and flexibility with internal sensor
  • Automatic sensor detection
  • Mini statistics function: displays the measured value, the average value, the difference between the max. and min. values, time and date
  • Tests in all test directions (360°)
  • Internal data memory for up to 9 measuring groups (with up to 9 individual values, from which the average value of the group is formed)
  • Measurement display: Rockwell (B & C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL) and tensile strength (MPa)
  • Automatic unit conversion: converts the measurement result automatically to all of the above-mentioned hardness units, as well as to tensile strength
  • Auto power-off function

Delivery
1x hardness tester HMM
Sensor type D
Wireless infrared-connected printer
3x batteries (AAA)
Mains connector

Notes
For replacement batteries, see art. no. 1039900 304.
thinnest measurable layer 8 mm

Brand: SAUTER
Type: HMM
Hardness accuracy: ± 6 HL
Length x width x height: 150 x 80 x 30 mm
Measuring range (low-alloy steel): 170-960 HL
Hardness revolution: 1 HL
Battery designation: 1.5 V Micro AAA
Memory (measurements): 9
ASTM: 0 - not applicable
Backlight: Yes
Data transmission type: No
Device diameter: 20 mm
Display type: LCD
Hardness display, optional: HB | HL (Leeb hardness) | HRB | HRC | HS (Shore hardness for steel) | HV | N/mm²
Height: 30 mm
Impact equipment type: D
Length: 150 mm
Number of material groups: 6 PCS
Number of rechargeable batteries/batteries: 3 PCS
Statistical evaluation: 0 - not applicable
Test lead: 20 mm
Width: 80 mm

Manufacturer part no.: HMM

EAN no.: 4045761112834

Product Datasheet
