Parallel rests set ISO 2768 14 pairs accuracy +/- 0.004 mm 14-50 mm

Parallel rests set ISO 2768 14 pairs accuracy +/- 0.004 mm 14-50 mm

Parallel rests set ISO 2768 14 pairs accuracy +/- 0.004 mm 14-50 mm
Item no: 1036615 101

Online price:

Available in 6-8 working days.

Application
As spacers for workpieces in a wide variety of machining operations.
The constant width means that the parallel rests can be built up in height.

Execution
  • Finely ground plane-parallel in pairs.
  • Case-hardened
  • Size information on the product
  • Pair tolerance, height ± 0.004 mm
  • Nominal dimension tolerance, height ± 0.004 mm
  • Remaining dimensions in accordance with DIN ISO 2768 - m

Advantage
  • High wear resistance and long service life
  • Wooden box with removable lid, ideal for handling at the workplace and safe storage

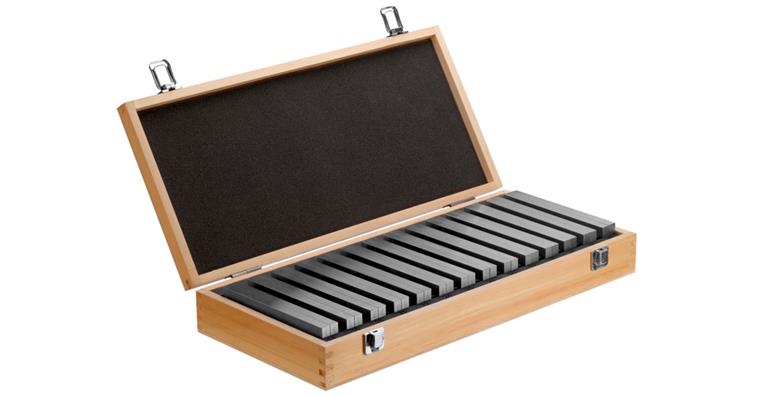

Delivery
In a wooden case with removable hinged lid


Brand: AMF
Parallel rest length: 150 mm
Composition of set: 1 pair each, width x height:
10x14 | 10x16 | 10x18 | 10x20 | 10x22 | 10x24 | 10x26 | 10x28 | 10x30 | 10x32 | 10x35 | 10x40 | 10x45 | 10x50 mm
Number of pieces in assortment/set: 14 Pair
Pair tolerance: 0,004 mm
Max. set height: 50 mm
Min. set height: 14 mm
Parallel rest width: 10 mm

Manufacturer part no.: 558279

EAN no.: 4020772019426

Product Datasheet
