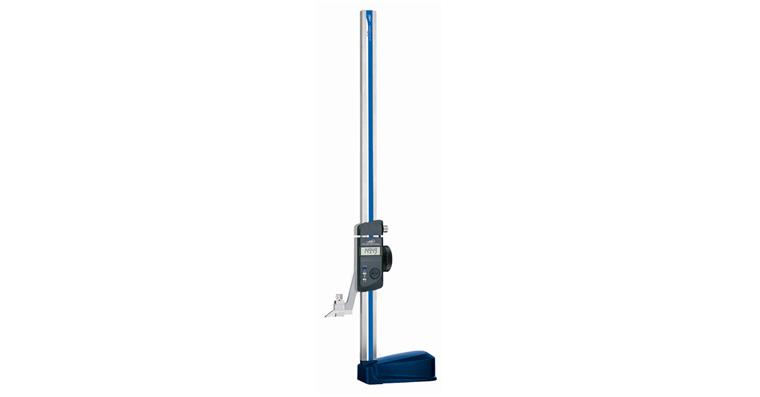

Digitaler Höhenreißer 0-350mm 0,01mm Auflösung mit Datenausgang und Zahnstange

Digitaler Höhenreißer 0-350mm 0,01mm Auflösung mit Datenausgang und Zahnstange

Digitaler Höhenreißer 0-350mm 0,01mm Auflösung mit Datenausgang und Zahnstange
Item no: 1035041 101

Online price:

Still in stock: 1

Application
For marking scale lines on workpiece surfaces and for measuring heights and clearances.

Execution
  • Slider and rail rustproof and hardened
  • Hand wheel for positioning and measuring
  • Steel foot
  • Fine adjustment and toothed rack

Delivery
with replaceable marking-off needle 65 mm


Brand: HELIOS-PREISSER
Min./max. length measuring range: 0-350 mm
Digit increment: 0,01 mm
Base length x base width: 98 x 180 mm
Digit height: 12 mm
Fine adjustment: Yes
Data transmission type: Cable
Interface: USB 2.0 type A | RS232 | Digimatic
Functions: On/Off | Preset function | With mm / inch switching | ABS function
Other standard: Company standard
Calibration Group: M
Base width: 180 mm
Display: Digital
Foot length: 98 mm

Manufacturer part no.: 0350 722

EAN no.: 4029713072704

Product Datasheet
