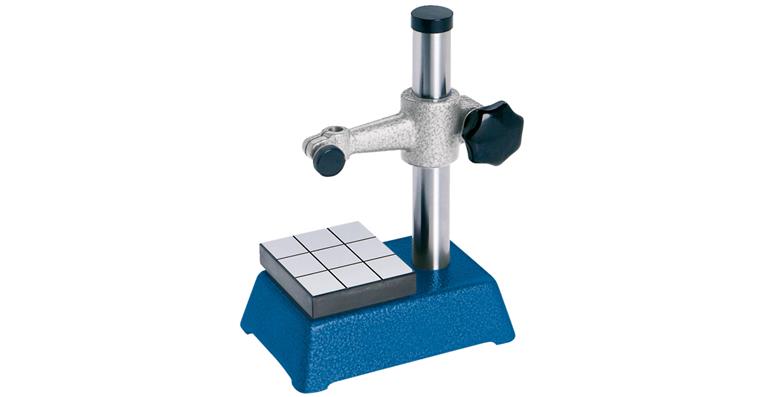

Small measuring table acc. DIN 876/0 H 100 mm transv. arm 50 mm w/o dial gauge

Small measuring table acc. DIN 876/0 H 100 mm transv. arm 50 mm w/o dial gauge

Small measuring table acc. DIN 876/0 H 100 mm transv. arm 50 mm w/o dial gauge
Item no: 1034613 101

Online price:

Available in 13-15 working days.

Execution
  • With dust grooves
  • Table surface hardened, ground and lapped
  • Flatness in accordance with DIN 876/0
  • For dial gauges with shank dia. 8 mm (h6)
  • Column hardened and finely ground

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank.

Brand: LIZZARD
Overhang: 49 mm
Measuring table length: 68 mm
Measuring table width: 60 mm
Max. measurement height: 100 mm
Column diameter: 22 mm
Suitable for shaft diameter: 8 mm
Flatness tolerance: 2 µm
Material of base plate: Steel
Overall height: 200 mm

EAN no.: 4024496081899

Product Datasheet
