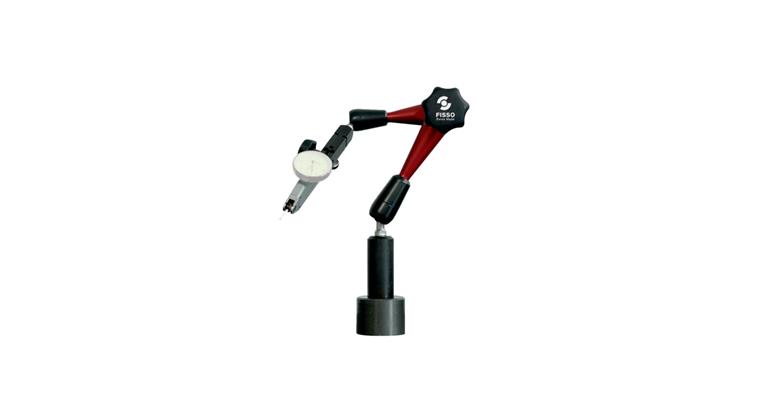

3D articulated measuring stand with pot magnet 300 N operating radius 200 mm

3D articulated measuring stand with pot magnet 300 N operating radius 200 mm

3D articulated measuring stand with pot magnet 300 N operating radius 200 mm
Item no: 1034020 120

Online price:

Still in stock: 6

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution
  • With pot magnet
  • Pre-stress prevents unwanted collapse in the loosened state to protect the measuring instruments
  • Maintenance-free and durable system
  • Short clamping path for optimum operating comfort
    Powerful and durable clamping
  • Vorspannung verhindert unerwünschtes Zusammenfallen in gelöstem Zustand zum Schutz der Messgeräte
  • Precise micro-fine adjustment
    • Made of steel, no play, for exact positioning of the measuring instruments as well as high measuring accuracy and repeatability

    • Maximum precision ball joints made of steel

    • Red anodised arm parts made of high-quality light metal

    • Micro-fine adjustment made of steel

    • Precisely positioned in no time at all

    • Friction clamping based on a continuously variable, purely mechanical clamping system

    • Articulated stand fits precisely into the ball joint for a high level of stability
  • Kombinierte Aufnahme für Messuhren, elektronische Messtaster mit Schaft Ø 8 mm und Fühlhebeltaster mit Schwalbenschwanz
  • Kugelgelenke mit größter Präzision aus Stahl gefertigt
  • Rot eloxierte Armteile aus hochwertigem Leichtmetall

Advantage
  • FISSO articulated stands can be moved easily and precisely into any desired position
  • Central clamping handle for securing and releasing all
    3 joints
  • Wartungsfreies und dauerhaftes System
  • Präzise Mikro-Feineinstellung

Delivery
In expandable polystyrene or cardboard box, without dial gauge/lever gauge probe

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

Brand: FISSO
Adherence strength: 300 N
Operation radius: 200 mm
Base diameter: 40 mm
Overall height: 335 mm
Material: Aluminium / plastic / steel
Base height: 30 mm

Manufacturer part no.: S-20.20

EAN no.: 7640152570056

Product Datasheet
