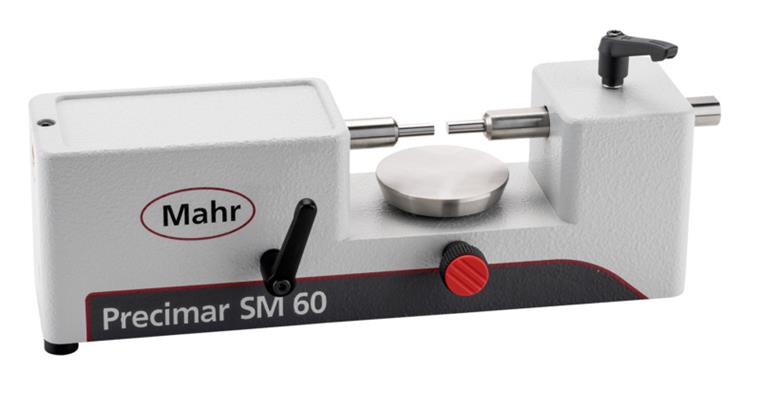

Length measuring bench Precimar SM 60 25-60 mm MR 0-25 mm

Length measuring bench Precimar SM 60 25-60 mm MR 0-25 mm

Length measuring bench Precimar SM 60 25-60 mm MR 0-25 mm
Item no: 1033846 101

Online price:

Available in 6-8 working days.

Application
Universal and easy-to-use short-length measuring bench for fast, precise external measurements with an application range of 60 mm.

Execution
  • Simple device design
  • Quick adaptation to new workpieces
  • Freely selectable measuring equipment (e.g. digital dial gauge)
  • Integrated coupling protects the measuring equipment being used
  • Can be used with a wide range of different measuring attachments

Notes
Optional accessories deliverable on request.

Brand: MAHR
Type: Precimar SM 60
Measuring span: 25 mm
Measuring surface diameter: 6 mm
Adjustable in height: Yes
Housing dimensions (LxWxH): 290 x 140 x 120 mm
Housing height: 120 mm
Housing length: 290 mm
Housing width: 140 mm
Max. length of application area: 60 mm
Max. measurement force: 1,2 N
Measuring table diameter: 60 mm
Min. length of application area: 0 mm
Min. measuring force: 1,0 N
Min./max. length of application area: 0-60 mm
Min./max. measurement force: 1.0-1.2 N
Shank mount diameter: 8 mm

Manufacturer part no.: 5357360

EAN no.: 4059192064624

Product Datasheet
