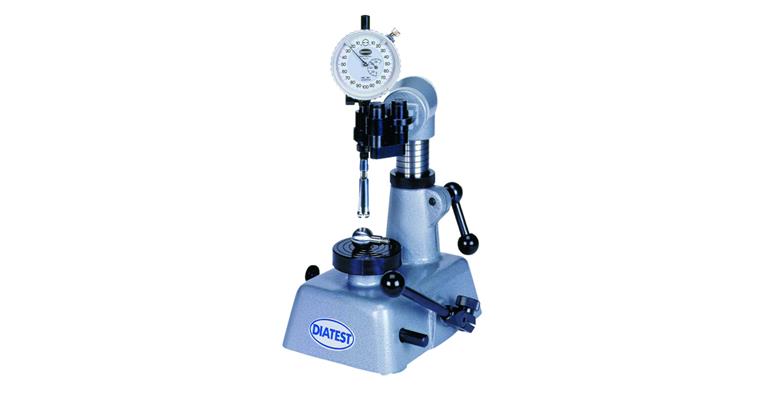

Application
For smaller workpieces, such as nozzles, ball bearing rings, bushings etc.
In series control as well as in the measuring room for measurements in the µm range.
Advantages of a stand bore measurement:
Thanks to the vertically clamped probe head, there is no need for the measuring instrument to oscillate in the bore. The measuring stroke can be carried out very sensitively and quickly. The smallest shape error of the bore (0.5 µm) is detected, e.g. conicity, ovality, barrel-shape.
For internal precision measuring instrument sets, art. nos. 1033820-33821.

Execution

• With measuring table
• Measuring stroke infinitely adjustable from 0-35 mm

Delivery
Without accessories

Notes
Quick measuring stand also available in a larger design.
