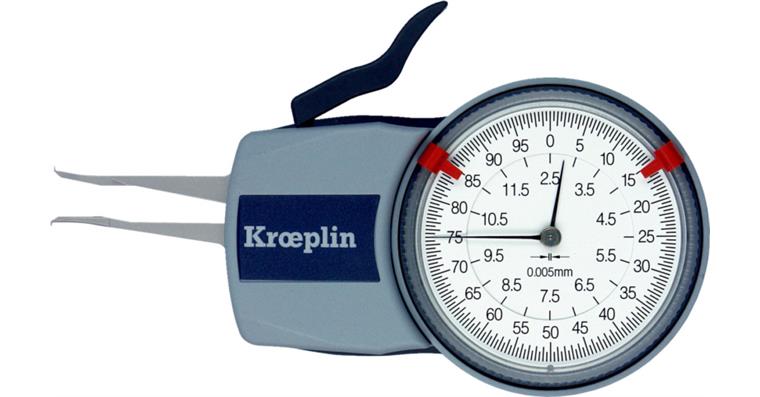

Internal quick probe with cutting edge R=0.1mm H102 MR 2.5-12.5 mm

Internal quick probe with cutting edge R=0.1mm H102 MR 2.5-12.5 mm

Internal quick probe with cutting edge R=0.1mm H102 MR 2.5-12.5 mm
Item no: 1033449 201

Online price:

Available in 11-13 working days.

Application
For rugged use in workshops for groove and bore measurement.

Execution
  • Absolute measuring instrument with damped drive and steel thread transmission for greater precision and a longer service life
  • 50% higher display resolution compared to earlier generations
  • Reliable reproducibility of the display
  • Clear, easy-to-read scales and tolerance marks

Delivery
1x measuring gauge
1x cardboard box
Factory test certificate
Operating instructions


Brand: KROEPLIN
Calibration Group: Q
Min./max. length measuring range: 2.5-12.5 mm
Min./max. measurement force: 0.8-1.2 N
Measuring arrangement: 1
Measuring depth: 12 mm
Type: H102
Error limit: 0,015 mm
IP protection class: IP 65
Display: Analogue
Measuring contact length movable: 0,9 mm
Data transmission type: 0 - not applicable
Max. length measuring range: 12,5 mm
Min. length measuring range: 2,5 mm
Digit increment: 0,005 mm
Max. measurement force: 1,2 N
Min. measuring force: 0,8 N
Repetition limit: 0,005 mm

Manufacturer part no.: H102

Product Datasheet
