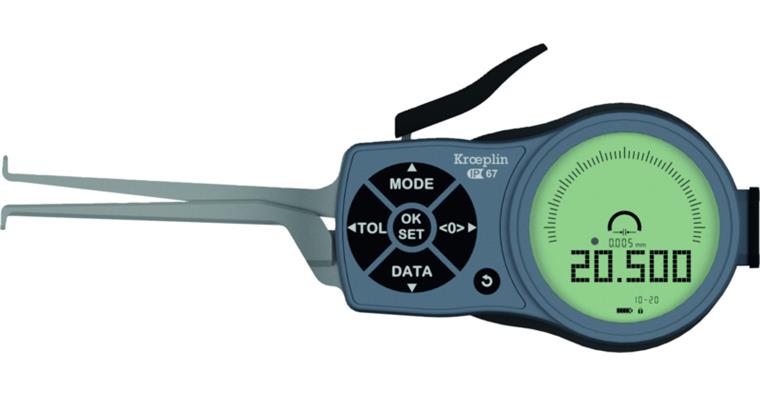

Digital 3-point internal quick probe IP 67 type L210P3 measuring range 10-20 mm

Digital 3-point internal quick probe IP 67 type L210P3 measuring range 10-20 mm

Digital 3-point internal quick probe IP 67 type L210P3 measuring range 10-20 mm
Item no: 1033438 102

Online price:

Available in 11-13 working days.

Application
For direct measurement of bores, recesses and internal grooves in difficult-to-reach positions.

Execution
  • Large digital display with analogue scale
  • Improved centring thanks to 3-point probing, resulting in fast measured value determination, reliable measurement, accurate measurement results
  • Application-specific measurement programmes and measuring contacts
  • Absolute and relative measurement programme
  • mm/inch switching
  • Red/green display for tolerance measurements
  • Adjustable digit increment: 0.001/0.002/0.005/0.01/0.02/0.05 mm

Delivery
1x measuring gauge
1x cardboard box
1x battery
Factory test certificate
Operating instructions

Notes
For replacement batteries, see art. no. 1039900 304.
Wireless interface (Bluetooth) deliverable on request.

Brand: KROEPLIN
Calibration Group: Q
Min./max. length measuring range: 10-20 mm
Min./max. measurement force: 1.1-1.6 N
Measuring arrangement: 9
Measuring depth: 75 mm
Type: L210P3
Error limit: 0,02 mm
IP protection class: IP 67
Display: Digital
Measuring contact length movable: 4,6 mm
Measuring contact length fixed: 3,7 mm
Data transmission type: 0 - not applicable
Max. length measuring range: 20 mm
Min. length measuring range: 10 mm
Digit increment: 0,005 mm
Max. measurement force: 1,6 N
Min. measuring force: 1,1 N
Repetition limit: 0,01 mm

Manufacturer part no.: L210P3

Product Datasheet
