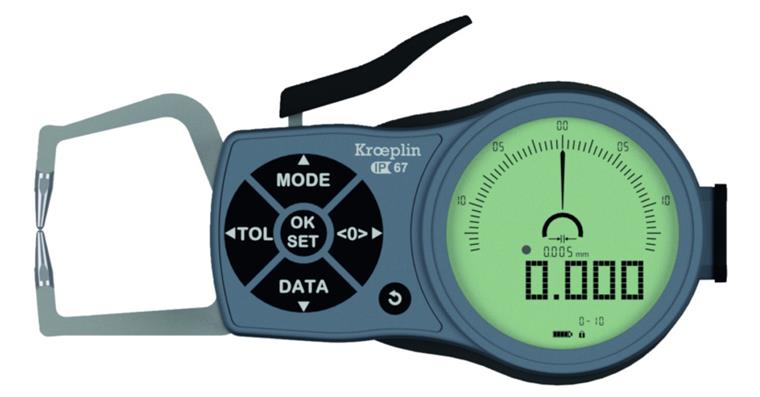

Digital external quick probe type K110 degree of protection IP67 MR 0-10 mm

Digital external quick probe type K110 degree of protection IP67 MR 0-10 mm

Digital external quick probe type K110 degree of protection IP67 MR 0-10 mm
Item no: 1033413 201

Online price:

Available in 11-13 working days.

Application
For rugged use in workshops for thickness and external measurement.

Execution
  • External quick probe with digital display
  • Adjustable digit increment: 0.001/0.002/0.005/0.01/0.02/0.05 mm
  • Application-specific measurement programmes and measuring contacts
  • Absolute and relative measurement programme
  • Red/green display for tolerance measurements
  • Switching from mm to inches
  • Independent battery operation

Delivery
Incl. factory calibration certificate, battery and operating instructions

Notes
For connection cables, see art. no. 1035200 307-308.
For replacement batteries, see art. no. 1039900 303.
Devices with long probe arms deliverable on request.
Wireless interface (Bluetooth) deliverable on request.

Brand: KROEPLIN
Calibration Group: Q
Min./max. length measuring range: 0-10 mm
Min./max. measurement force: 1.2-1.6 N
Measuring arrangement: 11
Measuring depth: 35 mm
Type: K110
Error limit: 0,015 mm
IP protection class: IP 67
Display: Digital
Measuring contact length movable: 19,1 mm
Measuring contact length fixed: 18,6 mm
Data transmission type: Cable
Max. length measuring range: 10 mm
Min. length measuring range: 0 mm
Digit increment: 0,005 mm
Max. measurement force: 1,6 N
Min. measuring force: 1,2 N
Repetition limit: 0,005 mm

Manufacturer part no.: K110

Product Datasheet
