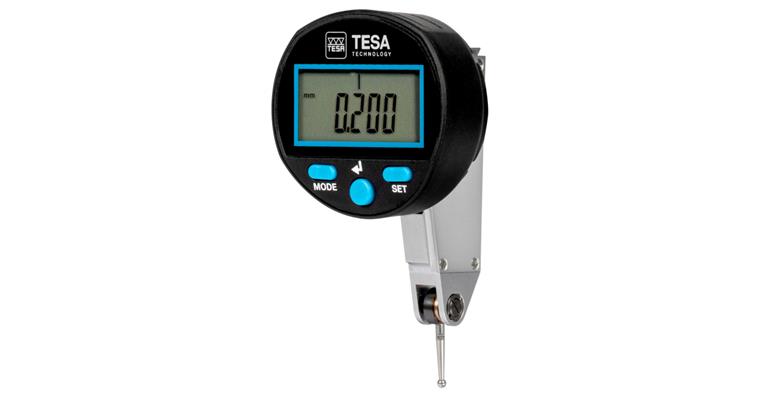

Digitales Fühlhebelmessgerät DIALTRONIC 0,8 mm mit Bluetooth

Digitales Fühlhebelmessgerät DIALTRONIC 0,8 mm mit Bluetooth

Digitales Fühlhebelmessgerät DIALTRONIC 0,8 mm mit Bluetooth
Item no: 1033260 401

Online price:

Available in 6-8 working days.

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts and boreholes and aligning workpieces.

Execution
  • Display rotates by 270°
  • Display rotates by 270°
  • Digital and analogue display
  • Digital and analogue display
  • Functions: Dynamic measurement MIN/MAX/MAX-MIN, automatic or manual standby mode, resolution (0.01 or 0.001 mm), reversal of the measuring direction, zero setting/PRESET, mm/in selection, measured value locking function, multiplication factor, keyboard lock
  • Functions: Dynamic measurement MIN/MAX/MAX-MIN, automatic or manual standby mode, resolution (0.01 or 0.001 mm), reversal of the measuring direction, zero setting/PRESET, mm/in selection, measured value locking function, multiplication factor, keyboard lock

Delivery
1x dial test indicator with built-in ball measuring insert dia. 2 mm
Measurement report
Quick-start instructions


Brand: TESA TECHNOLOGY | TESA TECHNOLOGY
Length measuring range: 0,8 mm | 0,8 mm
Scale value: 0,001 mm | 0,001 mm
Digit increment: 0,001 mm | 0,001 mm
Diameter: 45 mm | 45 mm
Length of measuring sensor from centre of ball: 12,5 mm | 12,5 mm
Measurement force: 0,15 N | 0,15 N
Error limit: 0,004 mm | 0,004 mm
Connection thread: M1.4 | M1.4
Data transmission type: Bluetooth | Bluetooth
Interface: Bluetooth | Bluetooth
Material of measuring ball: Carbide | Carbide
Ball diameter: 2 mm | 2 mm
Calibration Group: L | L
Other standard: Company standard | Company standard

Manufacturer part no.: 01830004

EAN no.: 7630041152616

Product Datasheet
