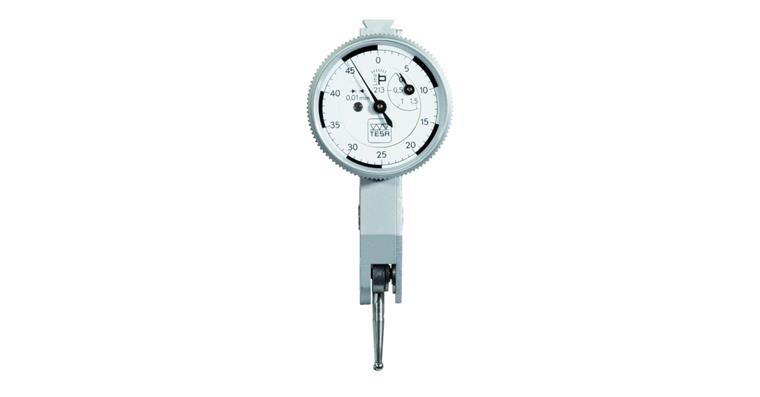

Fühlhebelmessgerät P-LINE 213, standard, 1,5 mm, 0,01 mm, Ø 27 mm

Fühlhebelmessgerät P-LINE 213, standard, 1,5 mm, 0,01 mm, Ø 27 mm

Fühlhebelmessgerät P-LINE 213, standard, 1,5 mm, 0,01 mm, Ø 27 mm
Item no: 1033260 301

Online price:

Available in 6-8 working days.

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts, boreholes and aligning workpieces.

Execution
  • Housing made of high-quality metal
  • Rotating scale dial
  • In accordance with ISO standard 9493

Delivery
Lever gauge probe with built-in ball measuring insert dia. 2 mm
Wrench for assembly of the gauge slide
Clamping shank dia. 4 mm
Clamping shank dia. 8 mm
Measurement report
Declaration of conformity


Brand: TESA TECHNOLOGY
Length measuring range: 1,5 mm
Type: Standardausführung
Scale value: 0,01 mm
Measurement travel of one pointer revolution: 0,5 mm
Diameter: 27 mm
Length of measuring sensor from centre of ball: 18 mm
Measurement force: 0,35 N
Connection thread: M1.7
Data transmission type: 0 - not applicable
Material of measuring ball: Carbide
Ball diameter: 2 mm
Calibration Group: L

Manufacturer part no.: 01810400

EAN no.: 7630041152333

Product Datasheet
