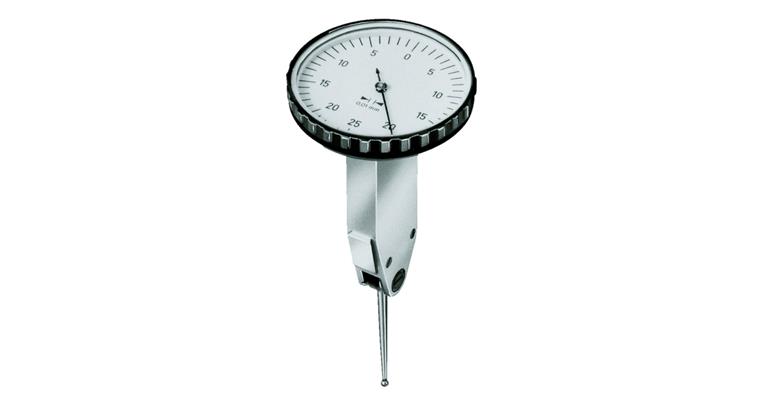

Lever gauge probe vertical carbide measuring probe reading/MR 0.01/0.8 mm

Lever gauge probe vertical carbide measuring probe reading/MR 0.01/0.8 mm

Lever gauge probe vertical carbide measuring probe reading/MR 0.01/0.8 mm
Item no: 1033249 101

Online price:

Available in 6-8 working days.

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts, boreholes and aligning workpieces.

Execution
  • Clockwise pointer rotation with automatic switching of measuring direction
  • Housing with three milled dovetail guides for secure clamping
  • Additional chrome plating to protect against damage
  • Essential points of the measuring element are embedded in ruby, sapphire or ceramic perforated bricks
  • Insensitive to shocks
  • Line scale rotatable on the profiled outer ring
  • With replaceable carbide measuring probe dia. 2 mm
  • Dial arranged perpendicular to the housing axis

Delivery
1x dial test indicator
1x case
1x wrench
Clamping shank dia. 8 mm h6


Brand: HHW
Length measuring range: 0,8 mm
Scale value: 0,01 mm
Diameter: 32 mm
Length of measuring sensor from centre of ball: 11,8 mm
Data transmission type: 0 - not applicable
Material of measuring ball: Carbide
Ball diameter: 2 mm
DIN: 2270
Calibration Group: L

EAN no.: 4024496081547

Product Datasheet
