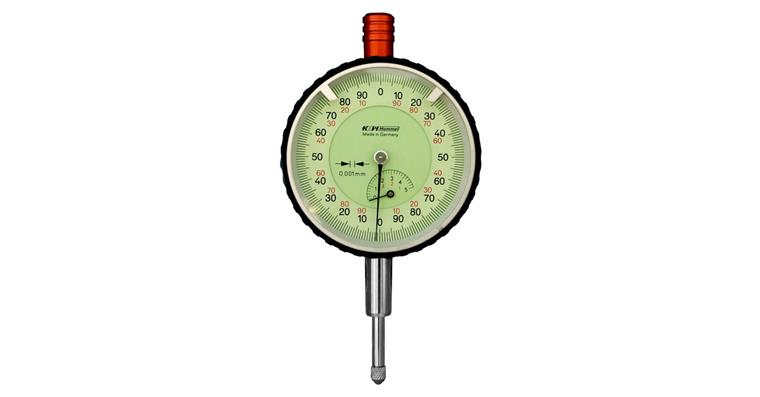

Fine dial gauge read. 0.001 mm accuracy per factory stand. MR 2 mm dia. 58 mm

Fine dial gauge read. 0.001 mm accuracy per factory stand. MR 2 mm dia. 58 mm

Fine dial gauge read. 0.001 mm accuracy per factory stand. MR 2 mm dia. 58 mm
Item no: 1033064 101

Online price:

Still in stock: 5

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • Dial with black advancing and red returning numbers
  • 2 adjustable tolerance marks
  • 2 pointers (small pointer for absolute mm display)
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Replaceable gauge slides
  • Accuracy according to factory standard
  • Nickel-plated metal housing
  • Essential points of the gear measuring element are embedded in sapphire, ruby or ceramic perforated blocks
  • With lifting sleeve

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 2 mm
Scale value: 0,001 mm
Measurement travel of one pointer revolution: 0,2 mm
Outer diameter: 58 mm
Shank diameter: 8 mm
IP protection class: 0 - not applicable
Shock protection: No
Material of outer ring: Plastic
Shaft length: 17,5 mm
Digit increment: 0,001 mm
Other standard: Company standard
Calibration Group: C

EAN no.: 4024496081004
