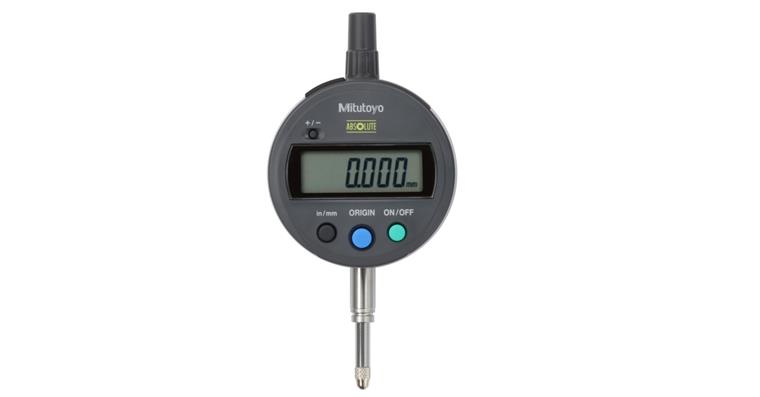

Digitale Messuhr ID-S, 12,7 mm, 0,001 mm Zoll mit Öse, IP42, ISO

Digitale Messuhr ID-S, 12,7 mm, 0,001 mm Zoll mit Öse, IP42, ISO

Digitale Messuhr ID-S, 12,7 mm, 0,001 mm Zoll mit Öse, IP42, ISO
Item no: 1033019 108

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • ABSOLUTE system. One-time setting of the starting position, which then remains the absolute zero point until the next battery change
  • All functions can be adjusted using large and user-friendly buttons
  • Mühelose Ablesung durch 9 mm große Ziffern
  • Funktionen: ON/OFF, ORIGIN (ABS Nullpunkt), Zählrichtung umkehrbar, Digimatic Datenausgabe

Notes
This digital dial gauge is equipped with a data output, but does not feature an integrated data button. The USB Input Tool Direct cable (optional accessory) and the USB-ITPAK software are required for data transfer.

Brand: MITUTOYO
Length measuring range: 12,7 mm
Max. length measuring range in inches: 0,5 in
Type: Rückwand mit Öse - ISO
Digit increment: 0,001 mm
Digit increment in inches: 0,00005 in
Error limit: 0,003 mm
Data transmission type: Cable | Bluetooth | Wireless
Repeat accuracy: 0,002 mm
IP protection class: IP 42
Dynamic measurement: No
Shank diameter: 8 mm
Digit height: 9 mm
Calibration Group: CD
Outer diameter: 59 mm

Manufacturer part no.: 543-791-10

EAN no.: 4946368863337

Product Datasheet
