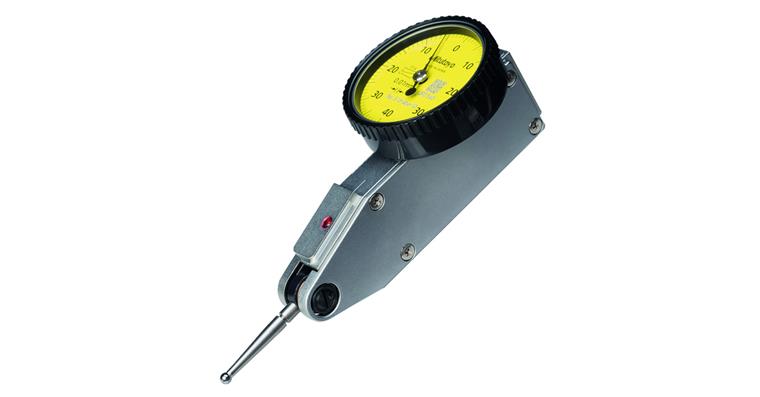

Lever gauge probe measuring range 0.8 mm probe length 20.9 mm basic set

Lever gauge probe measuring range 0.8 mm probe length 20.9 mm basic set

Lever gauge probe measuring range 0.8 mm probe length 20.9 mm basic set
Item no: 1033018 505

Online price:

Still in stock: 2

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts, boreholes and aligning workpieces.

Execution
  • Glare-free, flat dial face for easy reading of measurement results
  • The improved placement of the O-ring seal enables easy rotation of the dial face whilst protecting the scale from the ingress of dust and oil
  • Multi-layer coating on dial face
  • Accuracy according to factory standard

Delivery
1x dial test indicator
1x clamping shank dia. 8 mm
1x box


Brand: MITUTOYO
Length measuring range: 0,8 mm
Type: Measures 0-40-0
Scale value: 0,01 mm
Diameter: 29,2 mm
Length of measuring sensor from centre of ball: 20,9 mm
Min./max. measurement force: 0.01-0.3 N
Error limit: 0,008 mm
Connection thread: M1.7
Material of measuring ball: Carbide
Ball diameter: 2 mm
Calibration Group: L

Manufacturer part no.: 513-464-10E

EAN no.: 4946368675770

Product Datasheet
