ATORN test pin set, gauge steel, TK1, 1.00-10.00 mm in 0.10 mm increments

ATORN test pin set, gauge steel, TK1, 1.00-10.00 mm in 0.10 mm increments

ATORN test pin set, gauge steel, TK1, 1.00-10.00 mm in 0.10 mm increments
Item no: 1032643 103

Online price:

Available in 5-7 working days.

Application
For measuring bore hole clearances, bore diameters, angularity of bores etc.

Execution
  • Ground and lapped
  • Hardened 60–64 HRC
  • from diameter 3.00 mm: One end with 30-45° chamfer; other end deburred with diameter marking on end face
  • diameter from 1.5 to 2.999 mm: One end with 30-45° chamfer; other end deburred with diameter marking on outer surface
  • diameter from 1.00 to 1.499 mm: One end with 30-45° chamfer; other end deburred without diameter marking
  • up to 0.999 mm: both ends deburred, without diameter marking

Delivery
In wooden case


Brand: ATORN
Min./max. diameter: 1.00-10.00 mm
Tolerance class: 1
Material: Gauge steel
Length: 70 mm
Type: in 0.10 mm increments
Number of pieces in assortment/set: 91 PCS
Nominal dimension of measuring pins: 1.00-10.00 mm, increasing by 0.1 mm
Number of bins: 1
DIN: 2269

ATORN-No.: 32171003

EAN no.: 4050293158816

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Hand tap DIN 352 no. 2 second tap HSS polished M8
  •
    Cutting insert mini-bore right R007.0100-40 from bore dia. 4 mm cbd HC8615/TiN
    61,44 €
  • Cutting insert mini-bore left L004.0100-16 from bore dia. 4 mm cbd HC8615/TiN
  •
    Cutting insert mini-bore left L005.0150-30 from bore dia. 4 mm cbd HC8615/TiN
    48,10 €
  • Cutting insert mini-bore left L006.0150-30 from bore dia. 4 mm cbd HC8615/TiN
    48,10 €
  • Cutting insert mini-bore left L007.0200-25 from bore dia. 4 mm cbd HC8615/TiN
    44,83 €
  • Cutting insert mini-bore left L007.0200-35 from bore dia. 4 mm cbd HC8615/TiN
    55,49 €
  • Tabletop stopwatch dial dia. 110 mm 175x130x95 mm
  •

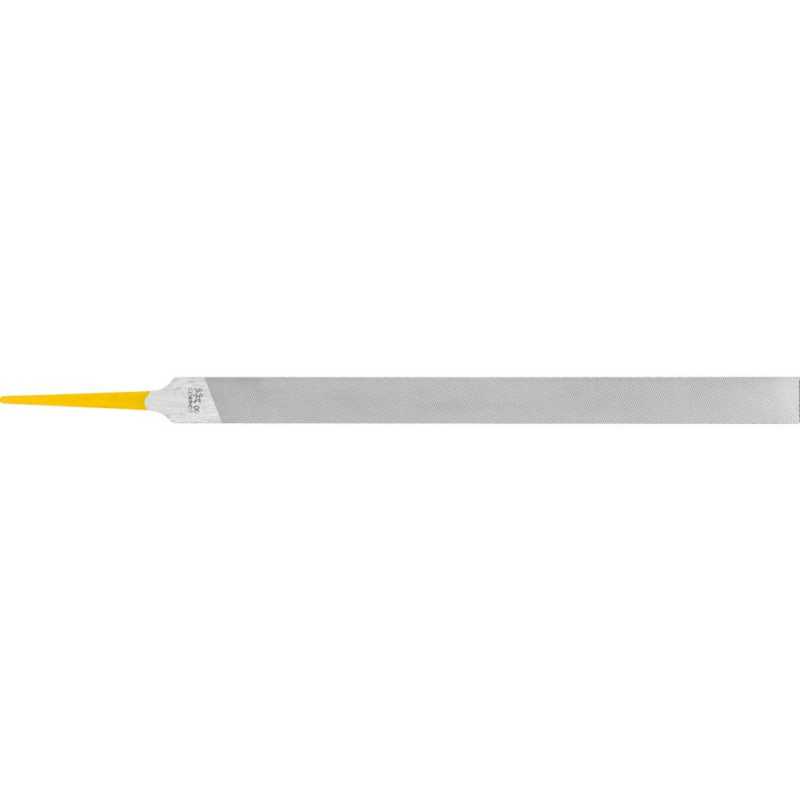

    CORINOX® precision file flat, cut on 3 sides f. st/stl, L=200mm, Swiss cut 00
