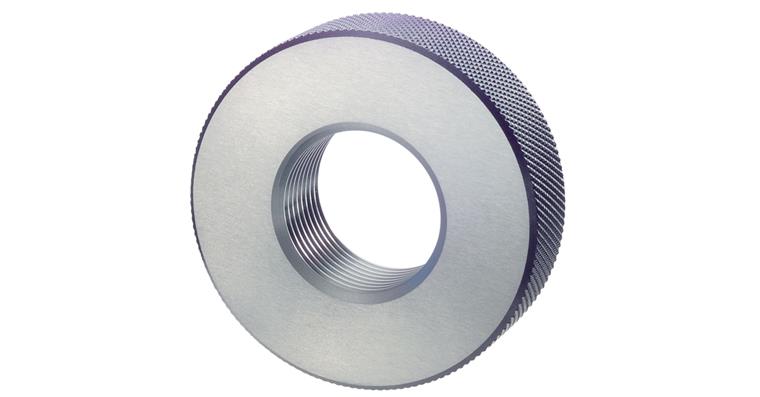

Thread go ring gauge Whitworth pipe thread DIN ISO 228 G 1.1/4 inch

Thread go ring gauge Whitworth pipe thread DIN ISO 228 G 1.1/4 inch

Thread go ring gauge Whitworth pipe thread DIN ISO 228 G 1.1/4 inch
Item no: 1032447 110

Online price:

Available in 8-10 working days.

Application
For testing the flank and core diameter of male threads.

Execution
  • Thread go ring gauge
  • Right-hand thread
  • Tolerance class A
  • Optimum surface quality and high hardness due to fine grinding and use of gauge steel


Brand: JBO
Calibration Group: AB
Thread type: Whitworth thread
Pipe thread code: 1 1/4"-11
Tolerance class: A
Material: Gauge steel
ISO: 228
Pitch: 11

Manufacturer part no.: 501352

EAN no.: 4046122219711

Product Datasheet
