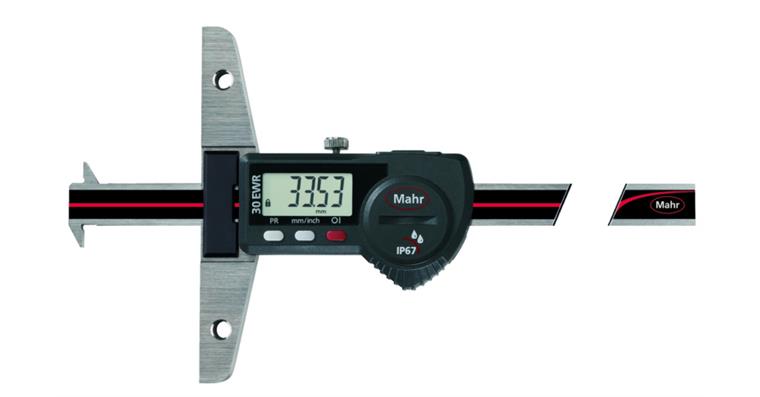

Digitaler Tiefenmessschieber 0-200mm mit Doppelhaken, IP67, EWR mit DA

Digitaler Tiefenmessschieber 0-200mm mit Doppelhaken, IP67, EWR mit DA

Digitaler Tiefenmessschieber 0-200mm mit Doppelhaken, IP67, EWR mit DA
Item no: 1031303 501

Online price:

Available in 6-8 working days.

Application
For measuring e.g. hole depths, offsets on workpieces etc.

Execution
  • High-contrast digital display
  • Locking screw at the top
  • Lapped guideways
  • Measuring surfaces made of hardened stainless steel
  • Hardened stainless steel slide and rail
  • Dirt scraper in the slide

Advantage
  • Ready to measure straight away thanks to reference system
  • Raised guideways to protect the scale
  • Excellent resistance against dust, coolants and lubricants

Delivery
1x 3 V battery (type CR 2032)
1x operating instructions
1x case

Notes
For connection cables, see art. no. 1035200 404-406.
For replacement batteries, see art. no. 1039900 102.

Brand: MAHR
Min./max. length measuring range: 0-200 mm
Digit increment: 0,01 mm
Data transmission type: Cable
Error limit: 0,03 mm
Digit increment in inches: 0,0005 in
Bridge length: 100 mm
Min./max. length measuring range in inches: 0-8 in
Interface: Digimatic | Opto RS232 | USB 2.0 type A
IP protection class: IP 67
ISO: 13385-2
Calibration Group: B
Digit height: 8,5 mm
Type of locating: With locking screw

Manufacturer part no.: 4126525

EAN no.: 4059192066123

Product Datasheet
