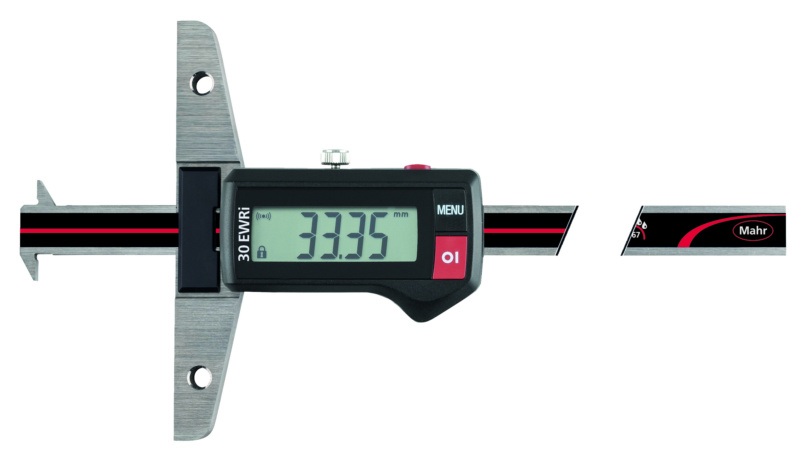

Digitaler Tiefenmessschieber 0-300mm, IP67, EWRi, kabellose Datenübertragung

Digitaler Tiefenmessschieber 0-300mm, IP67, EWRi, kabellose Datenübertragung

Digitaler Tiefenmessschieber 0-300mm, IP67, EWRi, kabellose Datenübertragung
Item no: 1031303 403

Online price:

Available in 6-8 working days.

Application
For universal depth, width, step and distance measurements.

Execution
  • High-contrast digital display
  • Locking screw at the top
  • Lapped guideways
  • Measuring surfaces made of hardened stainless steel
  • Hardened stainless steel slide and rail
  • Dirt scraper in the slide
  • Functions: AUTO ON/OFF, DATA (in conjunction with data connection cable), ON/OFF, PRESET (measurement presetting), RESET (sets the display to zero), mm/inch, LOCK function (key lock)
  • additional functions: HOLD (measured value storage), reverse counting direction

Advantage
  • Ready to measure straight away thanks to reference system
  • Raised guideways to protect the scale
  • Excellent resistance against dust, coolants and lubricants

Delivery
1x 3 V battery (type CR 2032)
1x operating instructions
1x case

Notes
For wireless receiver, see art. no. 1035200 410.
For replacement batteries, see art. no. 1039900 102.

Brand: MAHR
Min./max. length measuring range: 0-300 mm
Digit increment: 0,01 mm
Data transmission type: Wireless
Error limit: 0,04 mm
Digit increment in inches: 0,0005 in
Bridge length: 150 mm
Min./max. length measuring range in inches: 0-12 in
Interface: Integrated Wireless
IP protection class: IP 67
ISO: 13385-2
Calibration Group: B
Digit height: 11 mm
Type of locating: With locking screw

Manufacturer part no.: 4126673

EAN no.: 4059192064747

Product Datasheet
Additional articles

Please select a button.

Accessories Spare Parts
Versions
loading
Keywords:

[Text nicht gefunden]

  • Hand tap DIN 352 F third tap HSS polished M6
  •
    ATORN machine thread former HSSE-PM TICN 6HX M8
  •

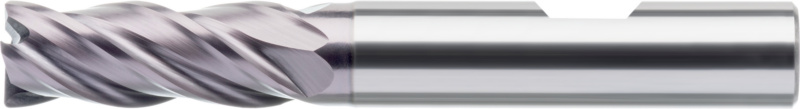

    ATORN HPC POWER SC end mill, HARD, 20.0 x 44 x 54 x 104 mm r=1 HB, type H, long
  •
    ATORN universal 3D edge finder shank dia. 20 mm.
  •
    Digitaler Tiefenmessschieber 0-150mm, IP67, EWRi, kabellose Datenübertragung
  •
    Digitaler Tiefenmessschieber 0-200mm, IP67, EWRi, kabellose Datenübertragung
  •
    Digitaler Tiefenmessschieber 0-500mm, IP67, EWRi, kabellose Datenübertragung
  •

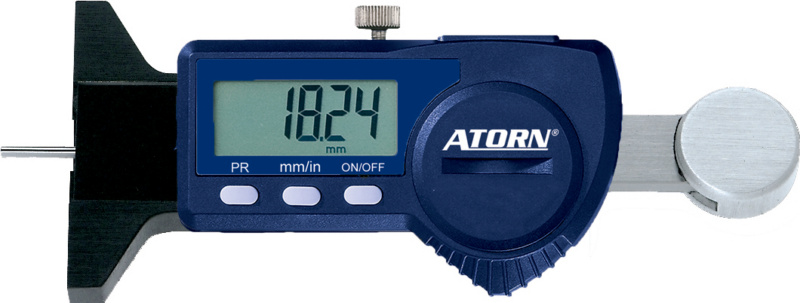

    ATORN small depth callipers 25 mm, 0.01 mm, electronic
  •
