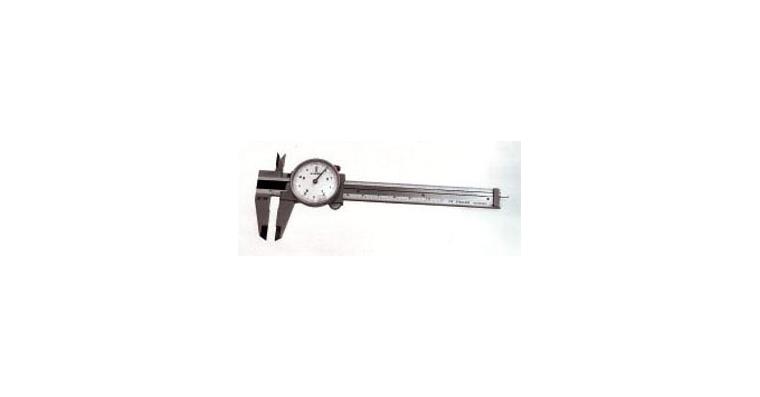

Callipers with round scale 0-200 mm reading 0.02 mm 2mm/rotation

Callipers with round scale 0-200 mm reading 0.02 mm 2mm/rotation

Callipers with round scale 0-200 mm reading 0.02 mm 2mm/rotation
Item no: 1031200 303

Online price:

Still in stock: 2

Application
For measuring external, internal, step and depth dimensions.

Execution
  • Brushed chrome-plated line scale
  • Locking screw at the top
  • Measuring surfaces made of stainless steel
  • Rotating dial with clamp
  • Slide and rail hardened, rust-free

Advantage
  • Jaw ends bevelled for thread core measurements
  • Dial with clear pitch and scaling
  • Shock-proof measuring mechanism

Delivery
1x case

Notes
For test gauge, see art. no. 1032060 201.

Brand: HHW
Min./max. length measuring range: 0-200 mm
Scale value: 0,02 mm
Measurement travel of one pointer revolution: 2 mm
Length of jaw: 50 mm
Depth gauge rod: Flat
Type of locating: With locking screw
With drive wheel: Yes
DIN: 862
ISO: 13385-1
Calibration Group: A

EAN no.: 4024496071197

Product Datasheet
