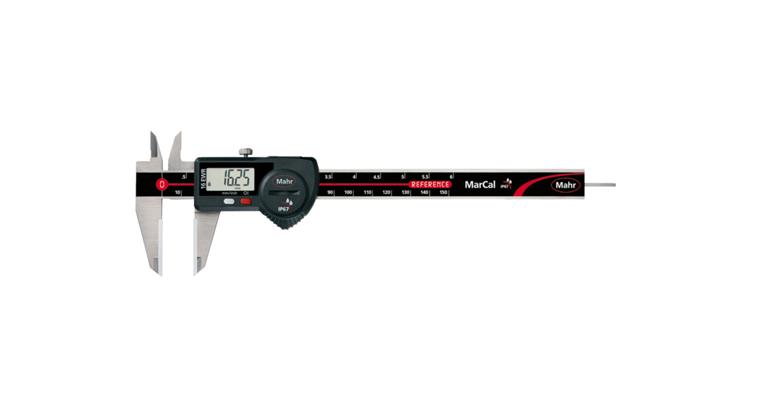

MarCal 16 EWR dig. pocket vernier callipers 0-150 mm IP67 TC meas. surf. w. DO

MarCal 16 EWR dig. pocket vernier callipers 0-150 mm IP67 TC meas. surf. w. DO

MarCal 16 EWR dig. pocket vernier callipers 0-150 mm IP67 TC meas. surf. w. DO
Item no: 1031039 105

Online price:

Available in 6-8 working days.

Application
For measuring external, internal, step and depth dimensions.

Execution
  • High-contrast digital display
  • Locking screw at the top
  • Lapped guideways
  • Measuring edges for internal measurement
  • Slide and rail hardened, rust-free
  • Stepped measuring device
  • Dirt scraper in the slide
  • External measuring surfaces made of ceramic, for measuring hard materials
  • Functions: ON/OFF, AUTO-ON/OFF, RESET (reset display), mm/inch, LOCK function (key lock), DATA (data transfer)

Advantage
  • Ready to measure immediately thanks to reference system
  • Raised guideways to protect the scale
  • Excellent resistance to dust, coolants and lubricants

Delivery
1x 3 V battery (type CR 2032)
1x operating instructions
1x case

Notes
For test gauge, see art. no. 1032060 201.
For connection cable, see art. no. 1035200 404-406.
For replacement batteries, see art. no. 1039900 102.

Brand: MAHR
Min./max. length measuring range: 0-150 mm
Digit increment: 0,01 mm
Depth gauge rod: Round
Fine adjustment: No
Length of jaw: 40 mm
Data transmission type: Cable
Error limit: 0,03 mm
Digit increment in inches: 0,0005 in
Min./max. length measuring range in inches: 0-6 in
IP protection class: IP 67
Interface: Digimatic | Opto RS232 | USB 2.0 type A
DIN: 862
Material: Steel, stainless
Calibration Group: A
Type: EWR-C
Length of cross tips: 16 mm
Depth gauge rod thickness: 1,5 mm
Digit height: 8,5 mm
Type of locating: With locking screw

Manufacturer part no.: 4103072

EAN no.: 4059192002282
