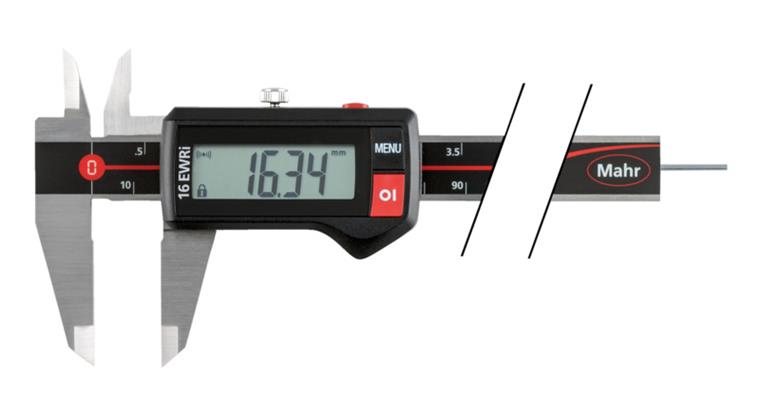

MarCal 16 EWRi IP67 digital pocket vernier callipers 0-300 mm

MarCal 16 EWRi IP67 digital pocket vernier callipers 0-300 mm

MarCal 16 EWRi IP67 digital pocket vernier callipers 0-300 mm
Item no: 1031038 104

Online price:

Still in stock: 1

Application
For measuring external, internal, step and depth dimensions.

Execution
  • Ready for immediate measurements with reference system
  • Stainless steel, slide and rail hardened
  • Callipers 0-300 mm in accordance with factory standard
  • Functions: ON/OFF, AUTO ON/OFF, HOLD (measured value storage), RESET (reset display), PRESET (measurement presetting), counting direction reversal, mm/inch, LOCK function (keyboard lock), DATA (data transfer)
  • Hardened stainless steel slide and beam
  • Stepped measuring device
  • Dirt scraper in the slide
  • Functions: ON/OFF, AUTO ON/OFF, HOLD (measured value storage), RESET (sets the display to zero), PRESET (measurement presetting), counting direction reversal, mm/inch, LOCK function (key lock)
  • weitere Funktionen: DATA (Datenübertragung)

Advantage
  • Ready to measure immediately thanks to reference system
  • Raised guideways to protect the scale
  • Excellent resistance to dust, coolants and lubricants

Delivery
1x 3 V battery (type CR 2032)
1x operating instructions
1x case

Notes
For test gauge, see art. no. 1032060 201.
For wireless receiver, see art. no. 1035200 410.
For replacement batteries, see art. no. 1039900 102.

Brand: MAHR
Min./max. length measuring range: 0-300 mm
Digit increment: 0,01 mm
Depth gauge rod: Without
Length of jaw: 64 mm
Data transmission type: Wireless
Error limit: 0,04 mm
Digit increment in inches: 0,0005 in
Min./max. length measuring range in inches: 0-12 in
IP protection class: IP 67
Interface: Integrated Wireless
Other standard: Company standard
Material: Steel, stainless
Calibration Group: A
Length of cross tips: 19 mm
Digit height: 11 mm
Type of locating: With locking screw

Manufacturer part no.: 4103406

EAN no.: 4059192002527
