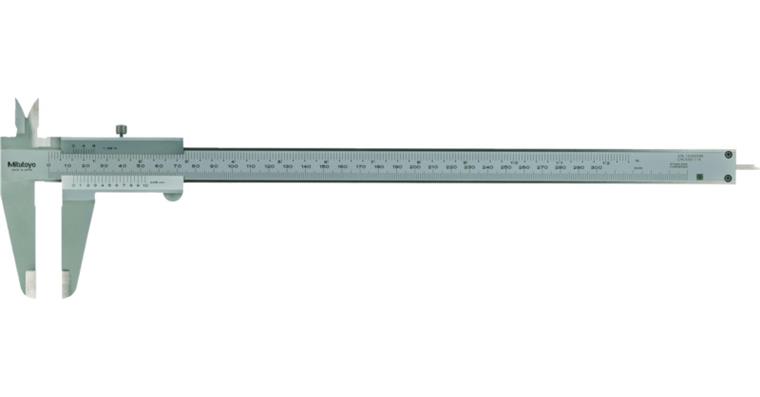

Precision pocket vernier callipers 0-300 mm/0-12 inch w. locking screw 0.05 mm

Precision pocket vernier callipers 0-300 mm/0-12 inch w. locking screw 0.05 mm

Precision pocket vernier callipers 0-300 mm/0-12 inch w. locking screw 0.05 mm
Item no: 1031014 203

Online price:

Still in stock: 1

Application
For measuring external, internal, step and depth dimensions.

Execution
  • Vernier scale and scale with brushed chrome-plated finish for glare-free reading
  • Locking screw at the top
  • Hardened stainless steel slide and rail
  • Raised guideways

Advantage
Easy reading via 14° inclined vernier scale

Delivery
1x box


Brand: MITUTOYO
Min./max. length measuring range: 0-300 mm
Vernier scale: 0.05 mm
Depth gauge rod: Flat
Vernier scale (imperial): 1/128 inch
Length of jaw: 64 mm
Length of cross tips: 22 mm
Min./max. length measuring range in inches: 0-12 in
Error limit: 0,1 mm
With drive wheel: No
Other standard: Company standard
Type of locating: With locking screw
Calibration Group: A

Manufacturer part no.: 530-115

EAN no.: 4946368110196

Product Datasheet
