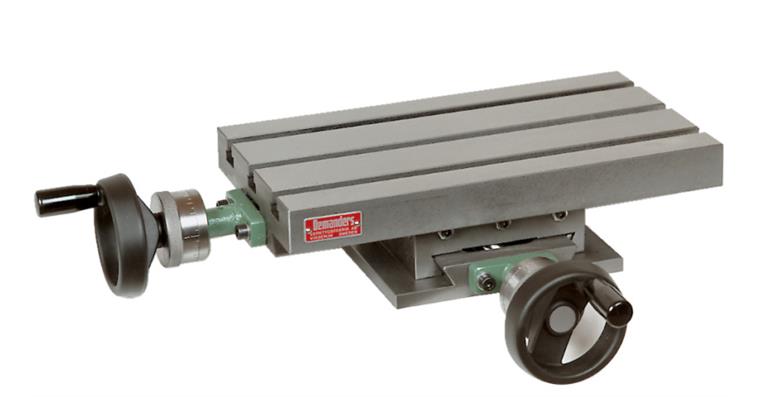

Coordinate table, table surf. 580x240 mm

Coordinate table, table surf. 580x240 mm

Coordinate table, table surf. 580x240 mm
Item no: 1029517 103

Online price:

Available in 6-8 working days.

Execution
  • With dovetail guides, adjustable with guide rails
  • Made from special cast iron, ground clamping surface and guides
  • Flatness accuracy 0.03 mm
  • Twisted trapezoidal threaded spindles with axial bearings
  • Thimbles with zero point adjustment; directly readable
  • Scale graduation 0.05 mm

Notes
Art. no. 1029517 102-104: With water channel and also clamping lever on both axes so that clamping is possible in any position.

Brand: ---
Table length: 580 mm
Table width: 240 mm
Surface area length: 259 mm
Surface area width: 200 mm
Overall height: 126 mm
Longitudinal motion: 375 mm
Lateral motion: 155 mm
T-slot width: 14 mm
T slot spacing: 60 mm
Load-carrying capacity: 280 kg
Weight: 60 kg
Base area length x base area width: 259 x 200 mm

EAN no.: 4024496070916

Product Datasheet
