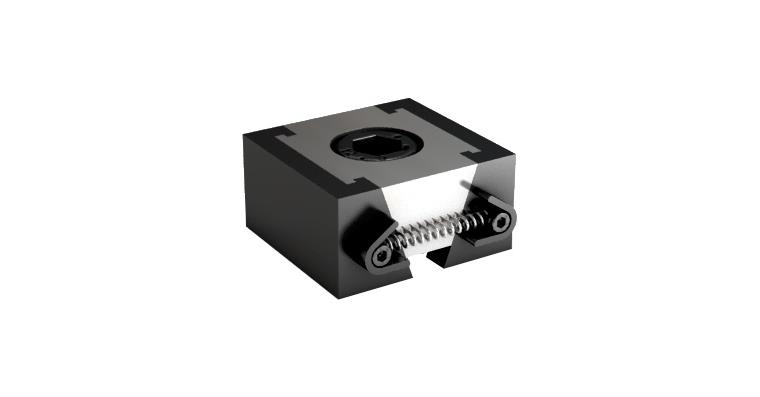

ATORN wedge clamping device, smooth, 30x22 mm, M12, including slot nut

ATORN wedge clamping device, smooth, 30x22 mm, M12, including slot nut

ATORN wedge clamping device, smooth, 30x22 mm, M12, including slot nut
Item no: 1027753 104

Online price:

Available in 8-10 working days.

Application
For screwing directly onto multiple clamping rails. Use a clamping screw to clamp two components simultaneously. All modules can be combined with all rails.

Execution
Smooth version

Advantage
  • The wedge clamping device can be positioned freely on any type of multiple clamping rail
  • All module sizes fit on all clamping rail widths

Delivery
1x wedge clamping device; incl. sliding block and screw


Brand: ATORN
Taper clamp design: Smooth
Taper clamp width (Keilspannerbreite B): 38 mm
Jaws width (Backenbreite A): 30 mm
Taper clamp height (Keilspannerhöhe C): 22 mm
Max. length: 46,5 mm
Min. length: 38 mm
Height (Höhe h2): 7 mm
Tension force: 3000 kN
Fastening thread: M12

ATORN-No.: 22940031

EAN no.: 4066107022020

Product Datasheet
