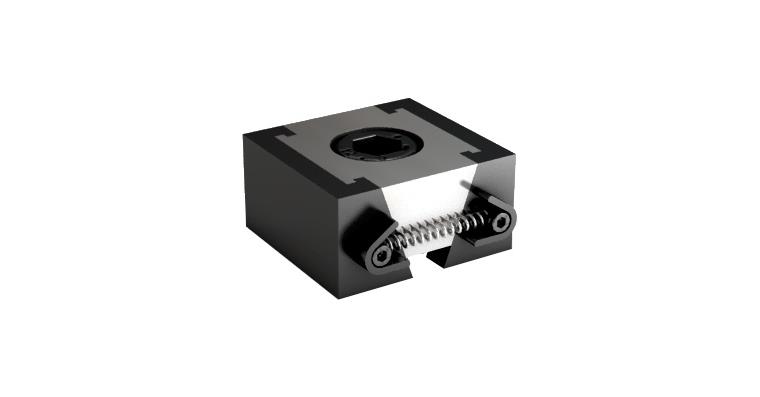

ATORN wedge clamping device, smooth, 22x15 mm, M8, including slot nut

ATORN wedge clamping device, smooth, 22x15 mm, M8, including slot nut

ATORN wedge clamping device, smooth, 22x15 mm, M8, including slot nut
Item no: 1027753 101

Online price:

Available in 8-10 working days.

Application
For screwing directly onto multiple clamping rails. Use a clamping screw to clamp two components simultaneously. All modules can be combined with all rails.

Execution
Smooth version

Advantage
  • The wedge clamping device can be positioned freely on any type of multiple clamping rail
  • All module sizes fit on all clamping rail widths

Delivery
1x wedge clamping device; incl. sliding block and screw


Brand: ATORN
Taper clamp design: Smooth
Taper clamp width (Keilspannerbreite B): 30 mm
Jaws width (Backenbreite A): 22 mm
Taper clamp height (Keilspannerhöhe C): 15 mm
Max. length: 33 mm
Min. length: 27,5 mm
Height (Höhe h2): 5 mm
Tension force: 1500 kN
Fastening thread: M8

ATORN-No.: 22940028

EAN no.: 4066107021993

Product Datasheet
