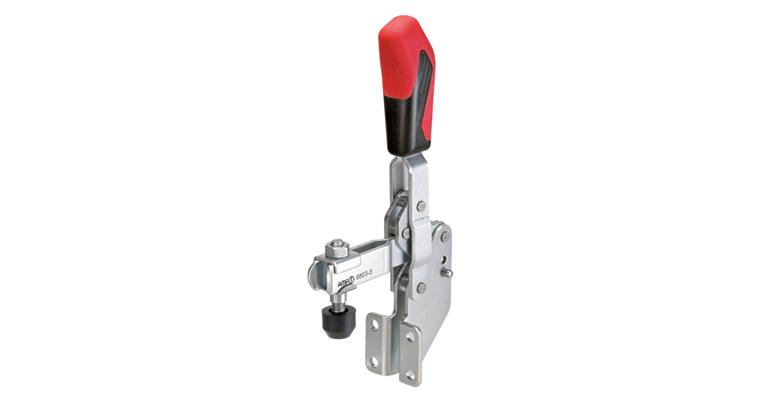

Vertical clamp w. retaining arm and angular base zinc-plated size 1 0.8-1.1 kN

Vertical clamp w. retaining arm and angular base zinc-plated size 1 0.8-1.1 kN

Vertical clamp w. retaining arm and angular base zinc-plated size 1 0.8-1.1 kN
Item no: 1027315 101

Online price:

Available for immediate delivery

Application
For quick clamping of workpieces.

Execution
  • Zinc-plated and passivated
  • Stainless steel rivets running in case-hardened bearing bushes for sizes 2 and 3
  • Bearing points greased
  • Ergonomic, oil-resistant handle with large hand rest and soft component
  • Safety clamping piece with finger protection
  • Retainer for the pressure screw at the end of the clamping arm

Delivery
Complete with tempered, zinc-plated pressure screw

Notes
Also deliverable in "STAINLESS STEEL rust-proof" design.

Brand: AMF
Size: 1
Width (B): 34,5 mm
Retaining force (F1): 0,6 kN
Max. tensile force (F2): 1,1 kN
Clamping height (H): 45 mm
Height (H1): 125 mm
Length, clamped (L1): 61 mm
Length, open (L2): 58 mm
Angle (Alpha): 98 Degree
Thumbscrew size (Andrückschraube): M5 x 30 mm
Hole distance 2 (C): 14 mm
Bore diameter (D): 4,5 mm
Hole distance 4 (K): 10 mm
Hole distance (M): 20 mm
Plate width (N): 30 mm
Distance (O): 5 mm
Plate length (P): 30 mm
Weight: 125 g

Manufacturer part no.: 0162106500

EAN no.: 4020772090319
