Simple clamp DIN 6314 groove width 9 mm L=60 mm

Simple clamp DIN 6314 groove width 9 mm L=60 mm

Simple clamp DIN 6314 groove width 9 mm L=60 mm
Item no: 1027101 102

Online price:

Available in 6-8 working days.

Execution
  • Flat
  • Heat-treated steel, painted


Brand: AMF
Slot width (b1): 9 mm
Length (l1): 60 mm
Suitable for screw: M8
Clamping shoe height (a): 12 mm
Clamping shoe width (b2): 25 mm
Width 3 (b3): 10 mm
Distance (e1): 13 mm
Slot length (e2): 22 mm
DIN: 6314

Manufacturer part no.: 7001

EAN no.: 4020772070014

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Stud bolt DIN 6379 rolled thread M 10 x 50 mm
    1,82 €
  • GEDORE double-end box wrench 13 x 15 mm DIN 3118
    24,03 €
  • Clamp, offset with adjustable support screw, nominal groove size 10 mm
  •
    Clamp with stepped teeth slot width 9 mm L=60 mm
  •
    Guide bush for push broach cat. no. 16881 RD I 6 x 32 mm
  •
    Jacket softshell winter BODYFORCE black size L
    135,90 €
  • Jacket BODYFORCE black/anthracite size L
  •
    Jacket BODYFORCE cornflower blue/black size XL
  •

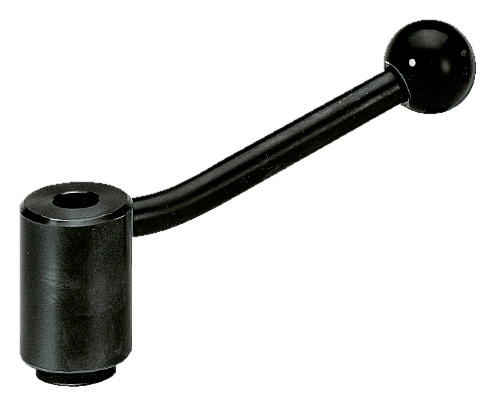

    Detent clamp lever for T-groove 12+14 mm M 12
  •
