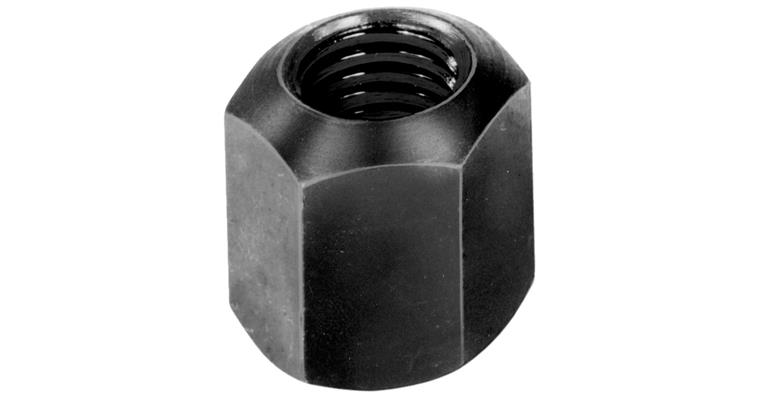

Hexagon nut DIN 6330 B, 1.5 d high size 22 M14

Hexagon nut DIN 6330 B, 1.5 d high size 22 M14

Hexagon nut DIN 6330 B, 1.5 d high size 22 M14
Item no: 1027008 308

Online price:

Available in 6-8 working days.

Application
Can be used for conical washer to DIN 6319 (art. no. 1027017 and 1027018). With the flat end, can be used for washers to DIN 6340 (art. no. 1027014).

Execution
  • Steel
  • Tempered

Notes
Art. nos. 1027008 304, 306 and 308 = size not included in DIN, dimensions similar to DIN.

Brand: AMF
Thread dimension: M14
Width across flats (s): 22 mm
Width across corners (e): 24,49 mm
Height (m): 21 mm
Radius (r): 20 mm
Property class: 10
DIN: 6330

Manufacturer part no.: 82404

EAN no.: 4020772082406

Product Datasheet
