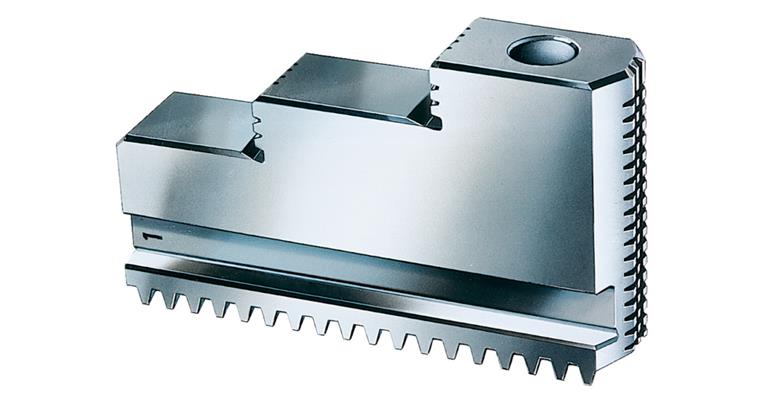

Stepped jaw hard set of 3 pieces for 3-jaw lathe chuck 26405-26430 dia. 200 mm

Stepped jaw hard set of 3 pieces for 3-jaw lathe chuck 26405-26430 dia. 200 mm

Stepped jaw hard set of 3 pieces for 3-jaw lathe chuck 26405-26430 dia. 200 mm
Item no: 1026440 102

Online price:

Available in 8-10 working days.

Application
For 3-jaw tapered-rod lathe chucks, art. nos. 1026405-26408.

Execution
  • Hard, undivided
  • Reversible as turning and drilling jaws

Delivery
Set = 3 pieces

Notes
Replacement hard interchangeable jaw grips and undivided, hard stepped jaws are not ground for concentricity on the clamping surfaces. They must be ground in the chuck with clamping pressure applied while running.

Brand: RÖHM
For chuck diameter: 200 mm
Jaws length: 94,7 mm
Jaws width: 22 mm
Jaws height: 60 mm
Design: Hard
Number of jaws: 3 PCS
Type: Undivided, reversible

Manufacturer part no.: 94001

EAN no.: 4019208023618

Product Datasheet
