Stirnseitenmitnehmer CoAE Grundkörper, ZA 32

Stirnseitenmitnehmer CoAE Grundkörper, ZA 32

Stirnseitenmitnehmer CoAE Grundkörper, ZA 32
Item no: 1025244 202

Online price:

Available in 8-10 working days.

Application
For efficient turning and milling of workpieces along their entire length without re-clamping with the highest accuracy.
Can be used in clockwise and anti-clockwise rotation.

Execution
  • Basic body with straight shank and hydraulic pressure compensation
  • Clamping diameter 8-80 mm
  • Max. workpiece weight 100 kg

Advantage
  • For turning and milling with single clamping
  • Balancing carrier disc, radially play-free
  • Maximum concentricity deviation 0.015 mm for maximum precision
  • Robust and consistent workpiece longitudinal stop on the front side by means of spring-loaded centring point
  • Maximum flexibility thanks to universal replacement of the carrier disc and centring point

Delivery
-1 piece CoAE clamping face driver basic body ZA


Brand: RÖHM

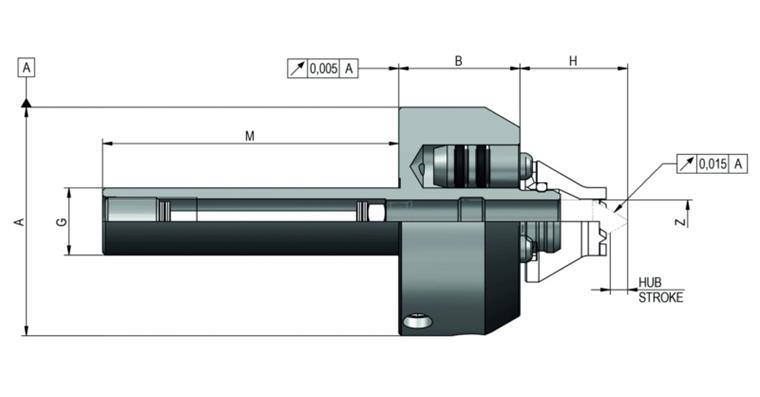

Shank diameter (Schaft-Ø): 32 mm
Outer diameter (Außen-Ø A): 70 mm
Length (Körperlänge B): 48 mm
Stroke longitudinal infeed (Y-axis) (Hub): 15 mm
Tip diameter: 16 mm

Manufacturer part no.: 1341542

EAN no.: 4019208495804
