Mitnehmer-Scheibe, Spannkreis-Ø 12, direkt verzahnt, Linkslauf

Mitnehmer-Scheibe, Spannkreis-Ø 12, direkt verzahnt, Linkslauf

Mitnehmer-Scheibe, Spannkreis-Ø 12, direkt verzahnt, Linkslauf
Item no: 1025236 203

Online price:

Available in 8-10 working days.

Application
For driving cylindrical components.

Execution
  • Driving disc, directly toothed
  • Anti-clockwise rotation
  • Max. workpiece hardness 35 HRC

Advantage
Can be used flexibly for different applications

Notes
The driving discs of the new CoAE fit the previous CoA

Brand: RÖHM
Clamping circuit diameter (Spannkreis-Ø S): 12 mm
Min./max. turning range diameter (Drehbereichs-Ø min./max.): 13-24 mm
Bore diameter (Bohrungs-Ø I): 7 mm
Suitable tip diameter (Für Spitzen-Ø Y): 6 mm
Length (Körperlänge R): 36 mm
Section, length (Absatzlänge V): 4 mm
Direction of rotation: Anti-clockwise rotation
Load force in a horizontal position: 6000 N
Max. turning range diameter: 24 mm
Min. turning range diameter: 13 mm

Manufacturer part no.: 1341619

EAN no.: 4019208501321

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Mitnehmer-Scheibe, Spannkreis-Ø 10, direkt verzahnt, Linkslauf
    93,30 €
  • Mitnehmer-Scheibe, Spannkreis-Ø 16, direkt verzahnt, Linkslauf
    93,30 €
  • Mitnehmer-Scheibe, Spannkreis-Ø 20, direkt verzahnt, Linkslauf
    93,30 €
  • Mitnehmer-Scheibe, Spannkreis-Ø 32, direkt verzahnt, Linkslauf
    93,30 €
  • Roll tape measure Popular 5 m, tape width 19mm, precision class II, red
    18,62 €
  • Electronics holding side cutters, oval head, mini bevel 115 mm
    34,57 €
  • Electronic side cutters, oval jaws, strong without bevel 125 mm
    79,01 €
  • Shape-cutting shears with lever transmission, stainless steel, left, 260 mm
    43,33 €

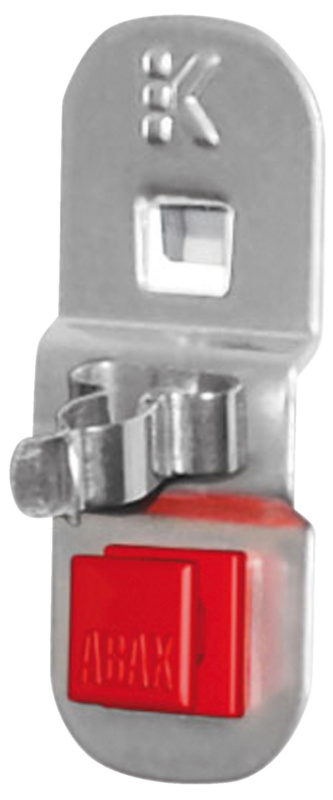

  • Tool clamp single large base plate diameter 28 mm aluminium-coloured
  •
