Synchronously running self-centring taper tip angle 75° MK 2 size 172

Synchronously running self-centring taper tip angle 75° MK 2 size 172

Synchronously running self-centring taper tip angle 75° MK 2 size 172
Item no: 1024502 101

Online price:

Available in 8-10 working days.

Application
For holding hollow bodies and tubes for lathe machining.

Execution
  • Body type: blunt taper
  • Taper angle 75°
  • Self-centring taper and cone shank are fully hardened and precision-ground

Advantage
  • Maintenance-free owing to permanent lubrication
  • Bewährte 3-fach Lagerung für hohe axiale und radiale Belastung


Brand: RÖHM
Morse taper size: MK 2

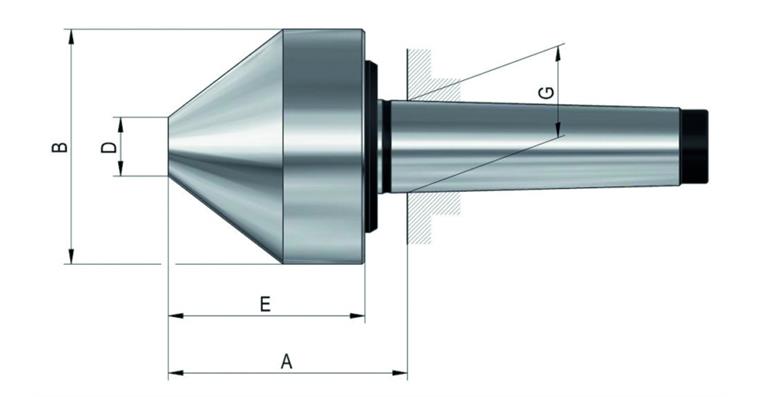

Diameter of housing (Gehäuse-Ø B): 80 mm
Tip diameter (Spitzen-Ø D): 20 mm
Programming size (Programmiermaß A): 80 mm
Taper length (Kegellänge E): 67 mm
Adapter diameter (Aufnahme-Ø G): 17,78 mm
Concentricity tolerance: 0,008 mm
Max. workpiece weight: 300 kg
Weight: 2,0 kg
Shape of tip: Blunt
Taper angle: 75 Degree
Taper shank size: 2
Angle of the tip: 75 Degree
Max. rotation speed: 5000 rpm
Type description: 172

Manufacturer part no.: 062089618-72-02

EAN no.: 4019208067995

Product Datasheet
