Synchronously running punch tip, tip angle 60° normal tip MK 3 size 104 H

Synchronously running punch tip, tip angle 60° normal tip MK 3 size 104 H

Synchronously running punch tip, tip angle 60° normal tip MK 3 size 104 H
Item no: 1024204 103

Online price:

Available in 8-10 working days.

Application
For counter-clamping workpieces on lathes and grinding machines

Execution
  • All-round centring tip in classic design for virtually any standard clamping situation
  • Body hardened and polished
  • Tip angle 60°
  • La pointe tournante peut être rectifiée plusieurs fois
  • Pour l'absorption de charges d'impact et la compensation de l'expansion linéaire.

Advantage
  • Proven three-way mount for high axial and radial loads
  • Lifetime lubrication for minimal maintenance requirements
  • Maximum concentricity deviation 0.005 mm


Brand: RÖHM
Morse taper size: MK 3

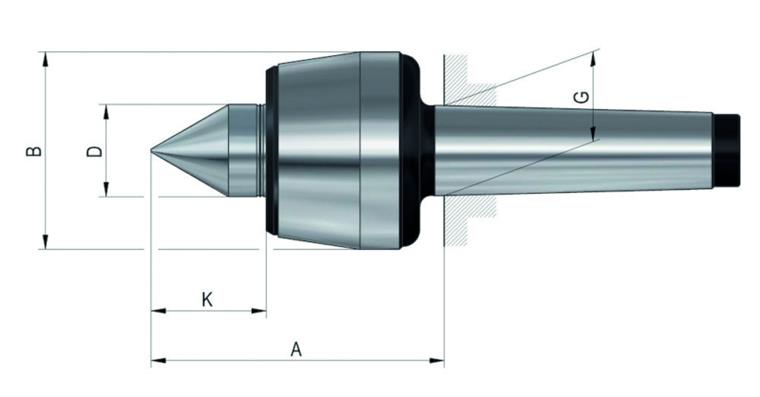

Max. tip diameter (Spitzen-Ø D): 22 mm
Diameter of housing (Gehäuse-Ø B): 48,5 mm
Length of tip (Spitzenlänge K): 27 mm
Programming size (Programmiermaß A): 70,5 mm
Adapter diameter (Aufnahme-Ø G): 23,825 mm
Concentricity tolerance: 0,005 mm
Max. workpiece weight: 400 kg
Max. rotation speed: 6300 rpm
Taper shank size: 3
Angle of the tip: 60 Degree
Type description: 104 H

Manufacturer part no.: 42315

EAN no.: 4019208014272

Product Datasheet
