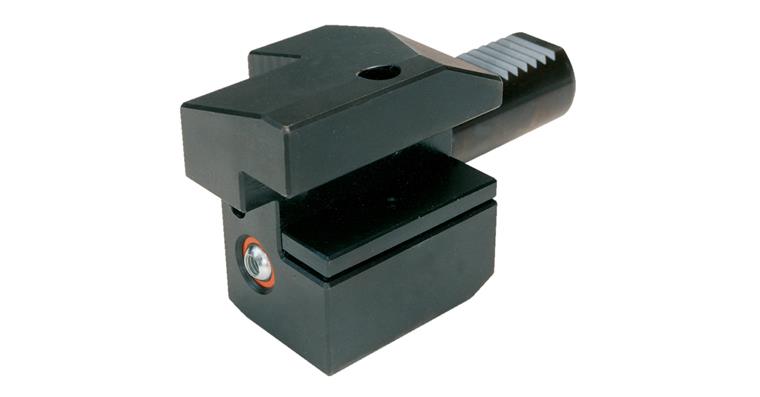

Square longitudinal mount, shank dia. 30 mm, right, shape C3, DIN 69880, part 4

Square longitudinal mount, shank dia. 30 mm, right, shape C3, DIN 69880, part 4

Square longitudinal mount, shank dia. 30 mm, right, shape C3, DIN 69880, part 4
Item no: 1021918 311

Online price:

Available in 8-10 working days.

Application
For square steel. For overhead work.

Execution
  • Type C3, axial right
  • Short design
  • 20MnCr5 hardened to 60 +/- 2 HRC
  • Completely burnished and all functional surfaces ground
  • With ball spray nozzle and threaded connector for tube fittings


Brand: LIZZARD
VDI mount diameter (VDI Aufnahmedurchmesser d): 30 mm
Form: C3 R overhead
Height (h1): 20 mm
Width (b): 70 mm
Holder width (b2): 35 mm
Width 2 (b1): 17 mm
Height 2 (h3): 38 mm
Height 3 (h4): 35 mm
Holder support length (l1): 10 mm
Length (l): 70 mm
DIN: 69880-1

EAN no.: 4024496065851

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Flachsenker ZS 180° Typ U HSS Z4 2/26,0
  •
    ATORN machine thread former IC HSSE TiCN DIN 374 MF12 x 1.25 mm 6HX
  •
    1/2 inch extension 95 mm pack = 4 pieces
  •

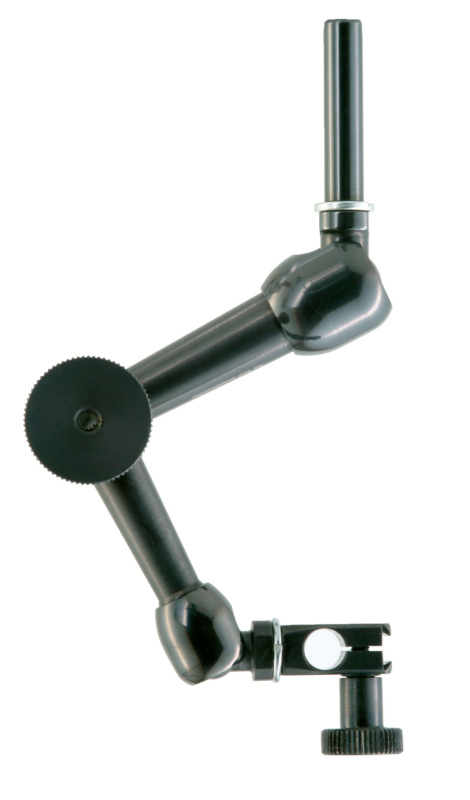

    Articulated measuring stand for shank dia. 8 mm L=40 mm
  •
    Pull clamp horizontal w/retainer zinc plated tensile force 1.6 kN adj. way 32mm
  •

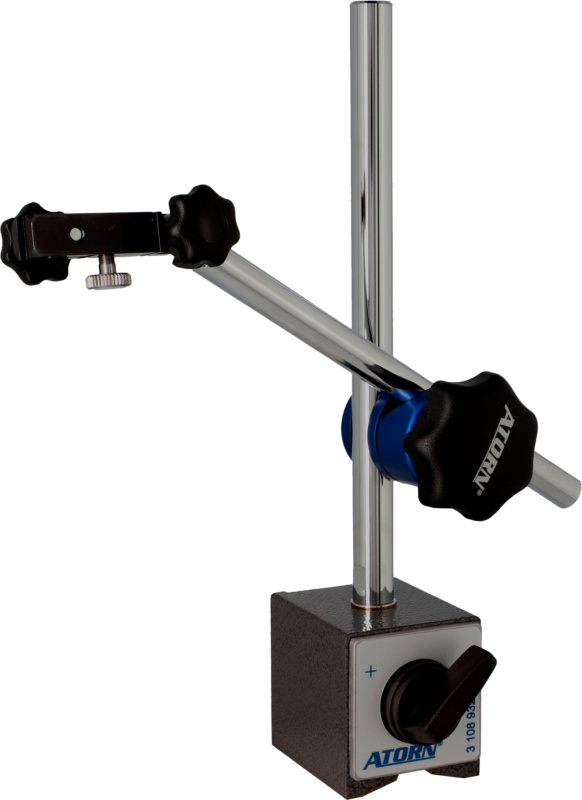

    ATORN magnetic measuring stand with rigid column and fine adjustment
  •
