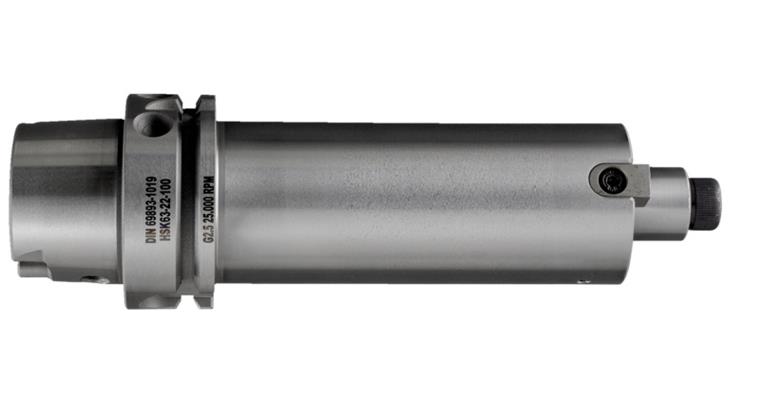

Face mill arbor DIN 69893 HSK-A63 G2.5 25,000 rpm d1=27 mm A=160 mm

Face mill arbor DIN 69893 HSK-A63 G2.5 25,000 rpm d1=27 mm A=160 mm

Face mill arbor DIN 69893 HSK-A63 G2.5 25,000 rpm d1=27 mm A=160 mm
Item no: 1021858 413

Online price:

Still in stock: 1

Application
For face milling cutter heads and cutters with lateral grooves.

Execution
  • Precision design with enlarged and face-ground contact surfaces
  • Short overhang for greater stability
  • Precision-balanced, G 2.5 - 25,000 rpm
  • With Balluff chip bore
  • With CCB/coolant channel bore

Delivery
Includes retaining screw.

Notes
For retaining screws, see art. nos. 1021656 and 1021659.
For retaining screw key, see art. no. 1021657.
Coolant tube, see art. no. 1021864.
Key for coolant tube, see art. no. 1021865.

Brand: HHW
Tool holding device: HSK A63
Form: A
Mandrel diameter (d1): 27,0 mm
Tap length (L1): 21,0 mm
Projecting length (A): 160,0 mm
Outer diameter (D): 58,0 mm
Coolant supply: Internal
Balancing quality: G 2.5 at 25,000 rpm
Construction length: Long
Max. concentricity: 0,006 mm

EAN no.: 4024496065370
