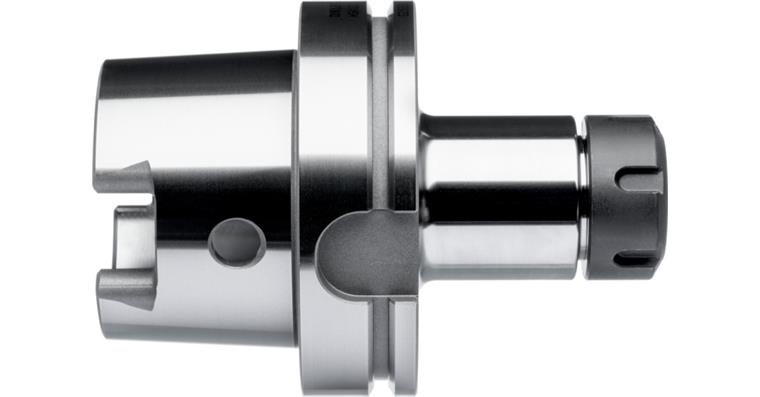

ATORN collet chuck HSK100 (ISO 12164) ER16 A=130 mm

ATORN collet chuck HSK100 (ISO 12164) ER16 A=130 mm

ATORN collet chuck HSK100 (ISO 12164) ER16 A=130 mm
Item no: 1021843 325

Online price:

Available in 8-10 working days.

Application
For clamping tools with straight shank in ER collet chucks in accordance with DIN 6499.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Internal coolant supply
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • With Balluff chip hole
  • All functional surfaces are machined
  • All ER16 collet chucks feature a hexagon nut

Delivery
1x HSK63 or HSK100 ER collet chuck (ISO 12164)

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 100
Collet type: ER 16
Min./max. clamping range: 0.5-10 mm
Projecting length (A): 130 mm
Outer diameter (D): 28 mm
Clearance length to collar (L1): 104 mm
Balancing quality: G 2.5 at 25,000 rpm
Thread dimension (G): M22 x 1.5

ATORN-No.: 22660509

EAN no.: 4050293709247

Product Datasheet
Versions
loading
