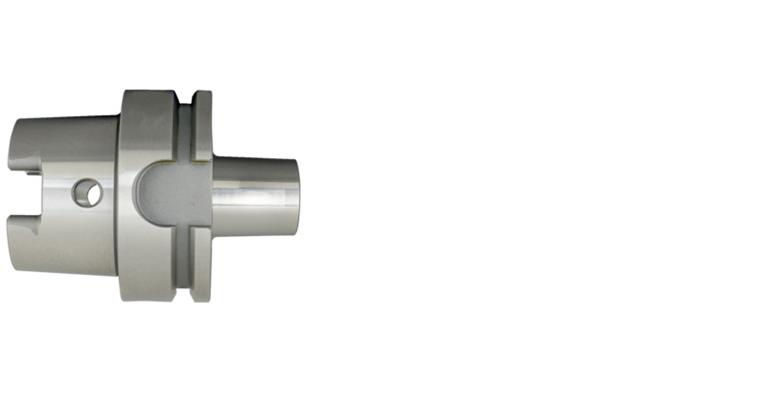

Mill arbor for screw-on mill cutters DIN 69893 A HSK-A63 diameter 12.5 x 25 mm

Mill arbor for screw-on mill cutters DIN 69893 A HSK-A63 diameter 12.5 x 25 mm

Mill arbor for screw-on mill cutters DIN 69893 A HSK-A63 diameter 12.5 x 25 mm
Item no: 1021841 109

Online price:

Available in 8-10 working days.

Execution
Hollow shank taper with gripper groove, concentricity between the taper and internal cone less than or equal to 0.008 mm. Pre-balanced according to G 6.3-15,000 rpm


Brand: HHW
Adapter diameter (d): 12,5 mm
Tapered diameter (d2): 21,0 mm
Outer diameter (D): 24,0 mm
Projecting length (A): 51,0 mm
Clearance length to collar (L): 25,0 mm
Suitable for thread (g): M12
Balancing quality: G 2.5 at 25,000 rpm
Coolant supply: Internal
Form: A
Max. concentricity: 0,008 mm
Tool holding device: HSK 63

EAN no.: 4024496064465

Product Datasheet
