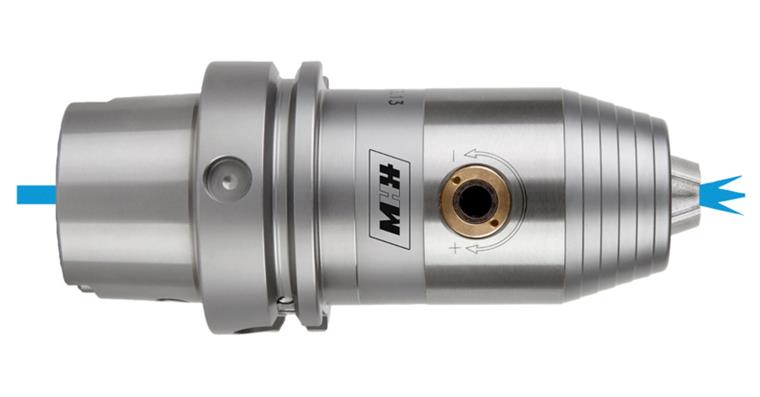

CNC precision drill chuck DIN 69893 HSK63 with ICS clamping range 2.5-16 mm

CNC precision drill chuck DIN 69893 HSK63 with ICS clamping range 2.5-16 mm

CNC precision drill chuck DIN 69893 HSK63 with ICS clamping range 2.5-16 mm
Item no: 1021830 202

Online price:

Still in stock: 2

Application
Suitable for clockwise/anti-clockwise rotation.

Execution
  • Concentricity less than or equal to 20 µm
  • High clamping force
  • Very short design
  • Max. rotation speed finely balanced 35,000 rpm

Delivery
- Delivered with hexagon key with T-handle AF 6 mm


Brand: HHW
Tool holding device: HSK A63
Min./max. clamping width: 2.5-16.0 mm
Outer diameter (D): 57,0 mm
Projecting length (A): 109,0 mm
Length closed (L1): 115,0 mm
Running direction: Clockwise/anti-clockwise rotation
Coolant supply: Internal
Balancing quality: G 6,3 at 25000 rpm
Construction length: Short
Retaining force: 90 N
Tightening torque: 20 Nm

EAN no.: 4024496064359

Product Datasheet
