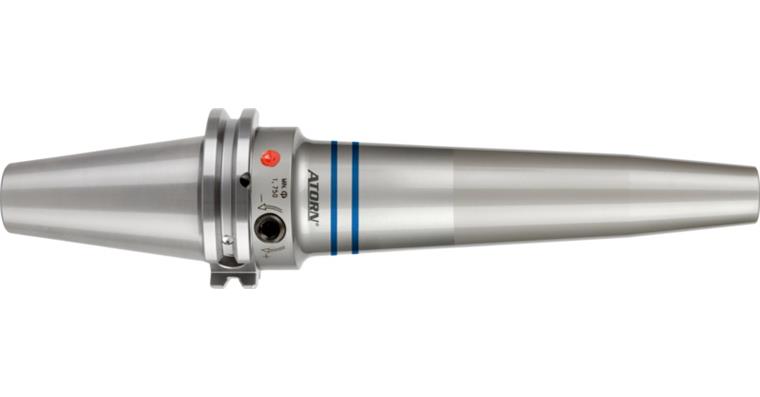

ATORN ultra-slim BT40 hydraulic expansion chuck (ISO 7388-2) dia. 6 mm A=200 mm

ATORN ultra-slim BT40 hydraulic expansion chuck (ISO 7388-2) dia. 6 mm A=200 mm

ATORN ultra-slim BT40 hydraulic expansion chuck (ISO 7388-2) dia. 6 mm A=200 mm
Item no: 1021654 108

Online price:

Available in 5-7 working days.

Application
Produced using an innovative process, the ultra-slim hydro expansion chuck combines the advantages of an expansion chuck and a shrink-fit chuck in a single product.

Execution
  • Extremely high clamping forces
  • Extremely high temperature resistance (up to 120 °C) ensures that the chuck retains its accuracy
  • Slim shrink-fit chuck-style design makes it suitable for narrow interference contours
  • Excellent damping properties
  • Max. concentricity < 0.003 mm
  • Standard tool changes as with expansion chucks without requiring additional devices
  • Reducer bushings enable various applications
  • Pre-balanced to G2.5/25,000 rpm

Delivery
1x ultra-slim BT40 hydraulic expansion chuck (ISO 7388-2)

Notes
The previous standard JIS B 6339 MAS BT was replaced by ISO 7388-2.

Brand: ATORN
Tool holding device: BT 40
Clamping diameter (d): 6 mm
Projecting length (A): 200 mm
Tapered diameter (d2): 16 mm
Outer diameter (D): 49,5 mm
Clamp in depth (l2): 37 mm
Clearance length to collar (l3): 152,5 mm
Max. adjustment travel (V): 10 mm
Form: JD/JF
Thread dimension (G): M5
Coolant supply: Internal axial
Concentricity tolerance: 0,003 mm
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21044953

EAN no.: 4050293433357

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Fibre disc ceramic stearate for ALU XF733, dia. 125 mm, grain 36
    2,73 €
  • ATORN cutting disc for stainless steel, 125 x 1 x 22 mm, INOX disc
    1,47 €

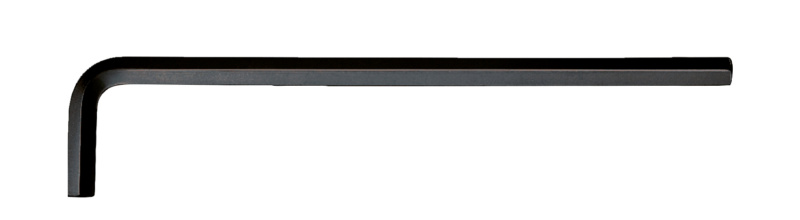

  • Hexagon pin wrench long similar to ISO 2936L arm length 70 x 9 mm AF 0.9 mm
  •
