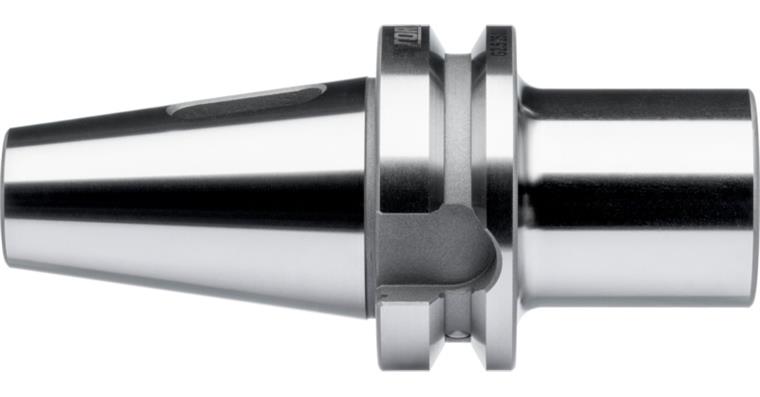

ATORN BT40 spacer sleeve (ISO 7388-2) MK3 A=135 mm

ATORN BT40 spacer sleeve (ISO 7388-2) MK3 A=135 mm

ATORN BT40 spacer sleeve (ISO 7388-2) MK3 A=135 mm
Item no: 1021653 209

Online price:

Available in 8-10 working days.

Application
For holding tools with Morse taper shank and flat tangs in accordance with DIN 228-1 form B.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm
  • Functional surfaces precision-ground, all other surfaces black-oxide
  • With Balluff chip hole

Delivery
1x BT40 spacer sleeve (ISO 7388-2)

Notes
The previous standard JIS B 6339 MAS BT was superseded by ISO 7388-2.

Brand: ATORN
Projecting length (A): 135 mm
Outer diameter (D): 40 mm
Tool holding device: BT 40
Morse taper size: MK 3

ATORN-No.: 22660902

EAN no.: 4050293713176

Product Datasheet
