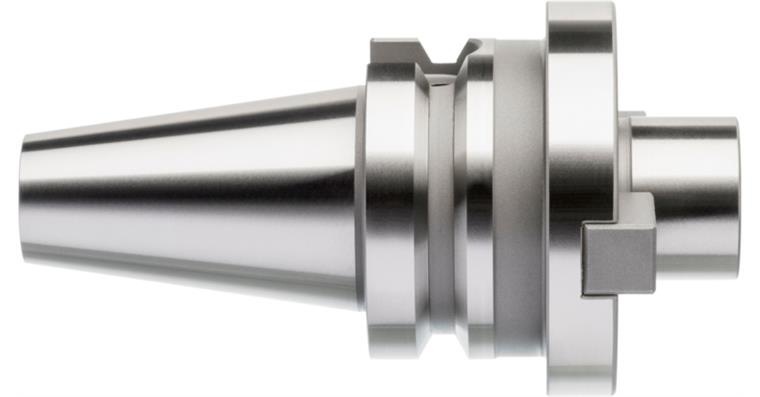

ATORN tr. milling cut. head arbour w/ planar contact face BT30 dia. 27 mm A=45mm

ATORN tr. milling cut. head arbour w/ planar contact face BT30 dia. 27 mm A=45mm

ATORN tr. milling cut. head arbour w/ planar contact face BT30 dia. 27 mm A=45mm
Item no: 1021652 002

Online price:

Available in 4-6 working days.

Application
For face milling cutter heads and milling cutters with transverse drive.

Execution
  • Pre-balanced G6.3/25,000 rpm
  • Precision version
  • External and internal cone polished
  • High concentricity

Advantage
  • Positive-locking planar contact face for increased rigidity and vibration damping
  • Extends the service life of cutting tools

Delivery
1x BT40 transverse drive shell end mill arbour (ISO 7388-2); with retaining screw

Notes
The previous standard JIS B 6339 MAS BT was superseded by ISO 7388-2.

Brand: ATORN
Tool holding device: BT 30
Form: JD
Outer diameter (D): 60 mm
Mandrel diameter (d1): 27 mm
Tap length (L1): 21 mm
Coolant supply: Internal
Balancing quality: G 6,3 at 25000 rpm
Concentricity tolerance: 5 µm

ATORN-No.: 21981177

EAN no.: 4050293647822

Product Datasheet
