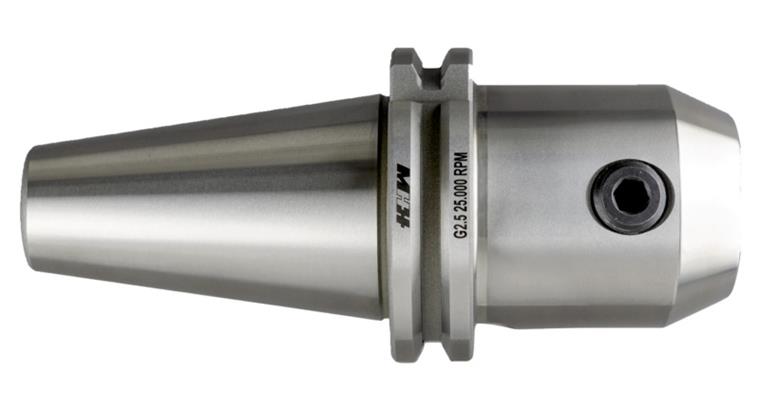

Milling cutter holder short DIN 69871 shape AD SK30 diameter 16 A=63 D=48

Milling cutter holder short DIN 69871 shape AD SK30 diameter 16 A=63 D=48

Milling cutter holder short DIN 69871 shape AD SK30 diameter 16 A=63 D=48
Item no: 1021632 106

Online price:

Still in stock: 6

Application
For clamping tools with lateral driving surfaces in accordance with DIN 1835 B and DIN 6535 HB.

Execution
  • Precision design
  • Precision-balanced, G 2.5 - 25,000 rpm
  • With internal cooling, design AD
  • Max. concentricity < 0.005 mm

Notes
For pull studs, see art. no. 1021733-1021740.
For spare screws, see art. no. 1021635.

Brand: HHW
Tool holding device: SK 30
Construction length: Short
Clamping diameter (d): 16,0 mm
Projecting length (A): 50,0 mm
Outer diameter (D): 48,0 mm
Coolant supply: Internal
Surface: Uncoated
Balancing quality: G 2.5 at 25,000 rpm
Form: AD
Thread dimension (g / G): M14
DIN: 69871-1
Concentricity tolerance: 0,005 mm
Standard shank design: DIN 69871-1 AD
Tightening thread: M12

EAN no.: 4024496060948
