ATORN SK40 to SK40 reducing sleeve (DIN2080) A=100 mm

ATORN SK40 to SK40 reducing sleeve (DIN2080) A=100 mm

ATORN SK40 to SK40 reducing sleeve (DIN2080) A=100 mm
Item no: 1021612 111

Online price:

Available in 8-10 working days.

Application
For mounting all SK systems (DIN 2080, ISO7388-1/DIN 69871, MAS BT, ANSI-CAT).

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm
  • With ring groove and plastic edge protection ring on the pull stud
  • Functional surfaces precision-ground, all other surfaces black-oxide
  • With Balluff chip hole

Advantage
Precision cross-hatch pattern on the contact surface for maximum accuracy

Delivery
1x SK40 or SK50 reducing sleeve (DIN2080)


Brand: ATORN
Form: A
Projecting length (A): 100 mm
Outer diameter (D): 40 mm
Tool holding device: SK 40
DIN: 2080

ATORN-No.: 22661287

EAN no.: 4050293715170

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN twist drill N HSS TiALN DIN 1897 12.00 mm x 102 mm x 51 mm 118 degrees
  •
    ATORN mini cutting insert ACR 3.0mm R0.2 L10 HW5615
  •

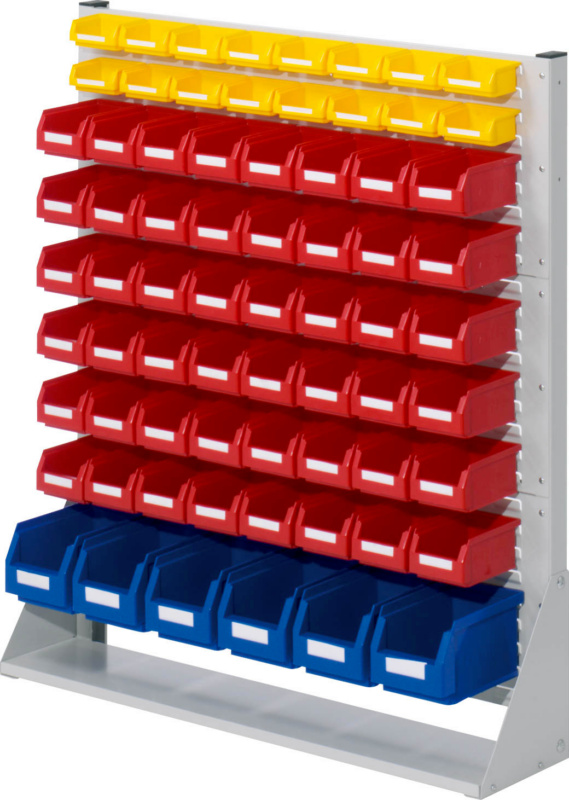

    Partition 1100x1000x240mm one-sided w/ easy-view storage bins 6xS6 48xS7 16xS8
  •
