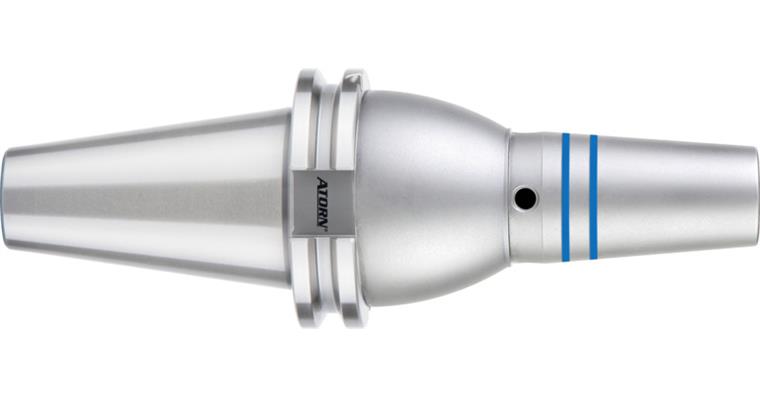

shrink-fit chuck SK40 KKB D10 A120 ISO 7388-1, type AD/AF

shrink-fit chuck SK40 KKB D10 A120 ISO 7388-1, type AD/AF

shrink-fit chuck SK40 KKB D10 A120 ISO 7388-1, type AD/AF
Item no: 1021600 311

Online price:

Available in 5-7 working days.

Application
For clamping cutters and drills with straight shanks in h6 tolerance. Suitable for heavy-duty machining and all high-power applications.

Execution
  • Guarantees maximum concentricity of 0.003 mm
  • Shrink grip and shrink release of carbide and HSS tools
  • Hardness 52 + 2 HRC
  • Maximum coolant pressure 80 bar
  • Adjustment travel 10 mm, can be adjusted on both sides
  • 4 additional drill holes for fine balancing
  • With Balluff chip hole
  • Geometry significantly improves damping behaviour

Advantage
  • High transmittable torques
  • High chip removal rate, perfect for HSC machining
  • Protects the spindle and machine
  • Ideal for high rotation speeds
  • Improved surface quality

Delivery
1x SK40 shrink-fit chuck (ISO 7388-1)

Notes
The previous standard DIN 69871-1 was superseded by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 40
Clamping diameter (d): 10 mm
Projecting length (A): 120 mm
Tapered diameter (d2): 24 mm
Outer diameter (D): 32,7 mm
Max. clamp in depth (max. L2): 41 mm
Form: A
Concentricity tolerance: 0,003 mm
Max. adjustment travel (max. V): 10 mm
Width across flats: 3 mm
Suitable for thread (G): M8 x 1
Coolant supply: KKB
Balancing quality: G 2.5 at 25,000 rpm
DIN: 69871-1

ATORN-No.: 21044680

EAN no.: 4050293407693

Product Datasheet
