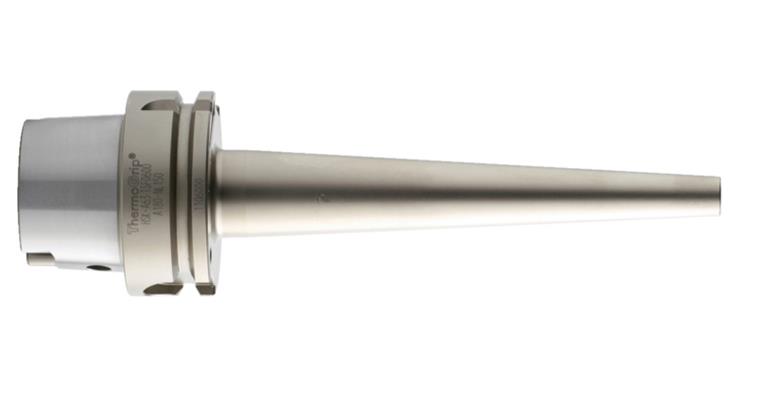

Shrink-fit chuck slim DIN 69893 shape A HSK63 dia. 10 x 90 mm stainless steel

Shrink-fit chuck slim DIN 69893 shape A HSK63 dia. 10 x 90 mm stainless steel

Shrink-fit chuck slim DIN 69893 shape A HSK63 dia. 10 x 90 mm stainless steel
Item no: 1021597 505

Online price:

Available in 6-8 working days.

Application
For clamping of cemented carbide, HSS and steel shafts with a tolerance of h6.

Execution
  • Slim
  • Stainless steel-coated
  • Highest level of concentricity and taper tolerance
  • Manufactured in air-conditioned production

Advantage
  • High retention forces and long service life thanks to the use of high-quality heat-resistant steels and special heat treatment processes
  • Patented taper allows automatic shrink processes and simplified handling

Notes
Coolant tube, see art. no. 1021864.
Key for coolant tube, see art. no. 1021865.
For shrinking equipment, see art. no. 1021588-1021595.

Brand: DIEBOLD
Tool holding device: HSK A63
Clamping diameter (d): 10,0 mm
Projecting length (A): 90,0 mm
Outer diameter (d3): 22,0 mm
Tapered diameter (d2): 16,0 mm
Clamp in depth (l2): 42,0 mm
Max. adjustment travel (max. V): 5,0 mm
Coolant supply: Internal
Balancing quality: G 2.5 at 25,000 rpm
Construction length: Short-slim
Max. concentricity: 0,003 mm
Surface: Chrome / A2 appearance
Thread dimension: M8 x 1

Manufacturer part no.: 72.575.501.300
