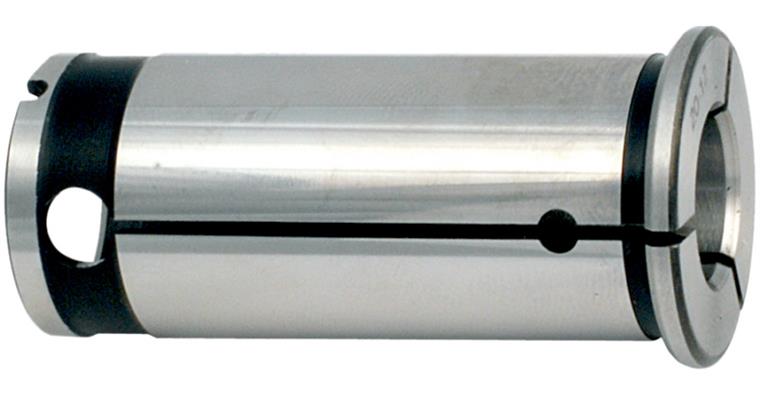

ATORN reducing sleeve 12 mm/8mm, sealed

ATORN reducing sleeve 12 mm/8mm, sealed

ATORN reducing sleeve 12 mm/8mm, sealed
Item no: 1021581 097

Online price:

Available in 4-6 working days.

Application
For reducing the clamping diameter. For drilling, reaming, milling and sharpening tools.

Execution
  • Suitable for all expansion chucks
  • Polished

Delivery
1x sealed reducing sleeve

Notes
Caution: Never clamp without a tool - the reducing sleeve will be damaged.

Brand: ATORN
Chuck clamping diameter (Futter-Spanndurchmesser d1): 12 mm
Clamping diameter (Spanndurchmesser d): 8 mm
Collar diameter (Bunddurchmesser d2): 16 mm
Insertion depth (Einstecktiefe l2): 37 mm
Max. insert depth (Einsatztiefe l): 36 mm
Length (Länge L1): 40 mm
Concentricity tolerance: 0,003 mm
Coolant supply: Yes

ATORN-No.: 20800124

EAN no.: 4050293200966

Product Datasheet
Additional articles

Please select a button.

Replacement article
Versions
loading
Keywords:

[Text nicht gefunden]

  • Reducing sleeve PSC20-11
    103,40 €
  • ATORN reducing sleeve 12 mm/3mm, sealed
  •
    ATORN reducing sleeve 12 mm/4mm, sealed
  •
    ATORN reducing sleeve 12 mm/6mm, sealed
  •
    ATORN reducing sleeve 32mm d1=18mm
  •
    Thread no-go ring gauge for standard ISO threads DIN 2285 nom. dia. M 16 6g
    107,35 €
  • T3E probe, 5µm/90° MR +/-300µm for Waveline W5+W10+W20
  •

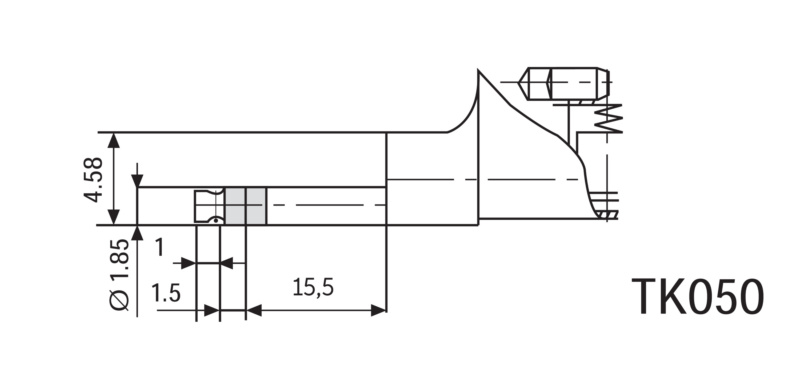

    Probe TK050 2 µm/90° MR -50 µm for Waveline W5+W10+W20
  •
