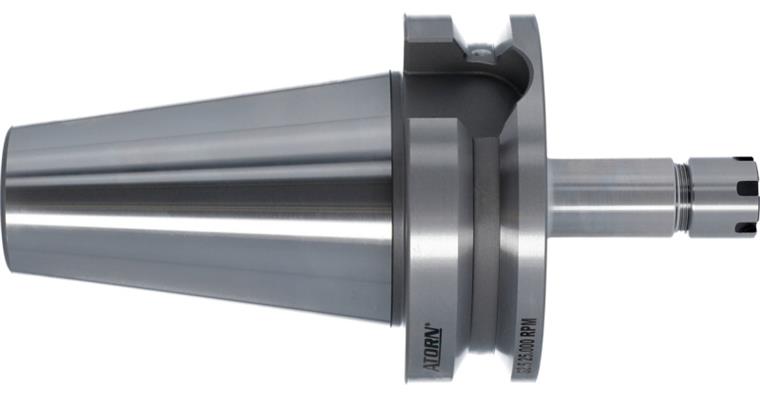

ATORN collet chuck BT40 (ISO 7388-2) ER11-Mini A=160 mm

ATORN collet chuck BT40 (ISO 7388-2) ER11-Mini A=160 mm

ATORN collet chuck BT40 (ISO 7388-2) ER11-Mini A=160 mm
Item no: 1021515 203

Online price:

Available in 8-10 working days.

Application
For clamping tools with a straight shank in ER collets in accordance with DIN 6499.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm
  • Functional surfaces precision-ground, all other surfaces black-oxide
  • With Balluff chip hole

Delivery
1x BT40 or BT50 ER miniature collet chuck (ISO 7388-2)

Notes
The previous standard JIS B 6339 MAS BT was superseded by ISO 7388-2.

Brand: ATORN
Tool holding device: BT 40
Collet type: ER 11
Min./max. clamping range (Spannweite min./max.. d): 0.5-7 mm
Outer diameter (D): 16 mm
Projecting length (A): 160 mm
Clearance length to collar (L1): 133 mm
Balancing quality: G 2.5 at 25,000 rpm
Thread dimension (G): M13 x 0.75

ATORN-No.: 22660622

EAN no.: 4050293710373

Product Datasheet
