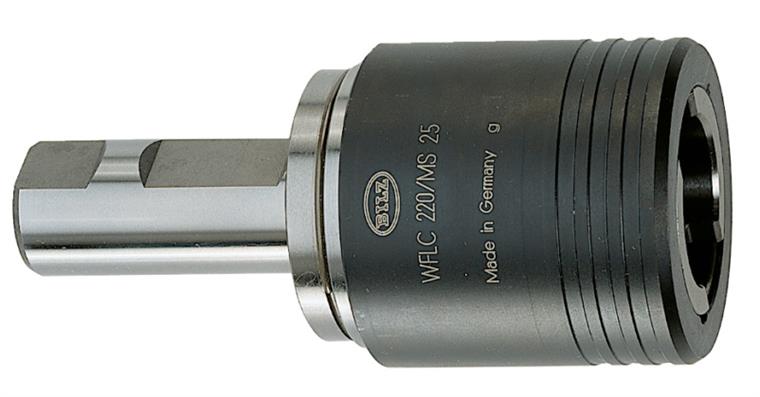

Quick-change tapping chuck type WFLC DIN 1835 for M6-M20

Quick-change tapping chuck type WFLC DIN 1835 for M6-M20

Quick-change tapping chuck type WFLC DIN 1835 for M6-M20
Item no: 1021452 102

Online price:

Available in 6-8 working days.

Execution
Type WFLC/MS. Precision design with length compensation under compression and tension. Straight-shank mount with side clamping surface similar to DIN 1835 B/E

Notes
For quick-change inserts, see art. no. 1021459-1021460.

Brand: BILZ
Tool holding device: HB/HE parallel shank
Used sizes (Einsatzgröße D2): 2
Suitable for screw thread: M6-M20
Pressure length compensation: 10,0 mm
Tension length compensation: 10,0 mm
Outer diameter (D): 60,0 mm
Projecting length (A): 68,0 mm
Insert diameter: 31,0 mm
Shank mount diameter (D1): 25,0 mm

Manufacturer part no.: WFLC220/MS25
